64 11 841 Replacing servodrive for right footwell flap

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove RIGHT GLOVEBOX WITH HOUSING .

Position of actuator drive:

OVERVIEW OF ACTUATOR DRIVES ON HEATER/AIR CONDITIONER

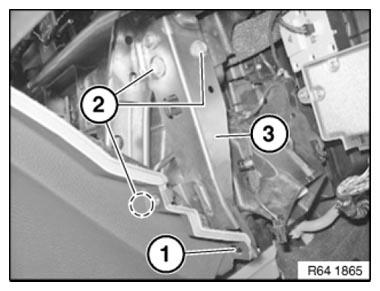

Release screw (1).

Unfasten screws (2).

Installation:

Replace screws (2).

Take off holder (3).

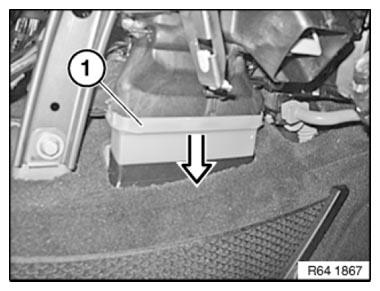

Fig 1: Uncliping Connector Piece

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip connector piece (1) and slide downwards.

Installation:

Latching of connector piece (1) must be felt.

Fig 2: Uncliping Connector Piece

Courtesy of BMW OF NORTH AMERICA, INC.

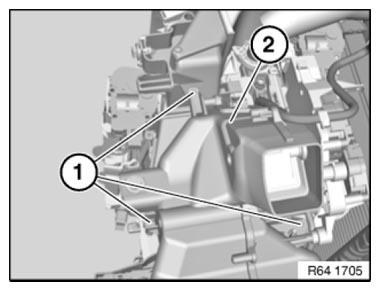

Release screws (1).

Feed out right footwell air outlet duct (2).

If necessary, disconnect plug connections at actuators.

Fig 3: Identifying Right Footwell Air Outlet Duct And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

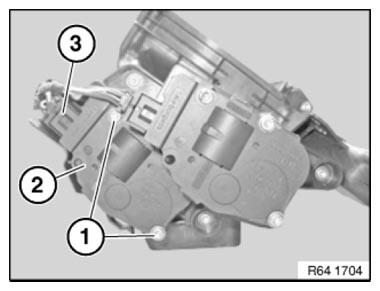

Release screws (1).

Remove servomotor (2) and unlock and disconnect plug connection (3).

Fig 4: Identifying Servomotor, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Servomotors must be re-addressed in the event of replacement!

Addressing can only be carried out with the BMW diagnosis system.

Service functions:

Body
Heating and A/C function
Flap motors
Re-address flap motors
