64 11 837 Replacing actuator drive for right stratification flap
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove INSTRUMENT PANEL TRIM .
Position of actuator drive:
OVERVIEW OF ACTUATOR DRIVES ON HEATING AND AIR-CONDITIONING UNIT
Disconnect plug connection (1).
Unlock ozone generator (2) in direction of arrow and remove towards front from filter housing (3).

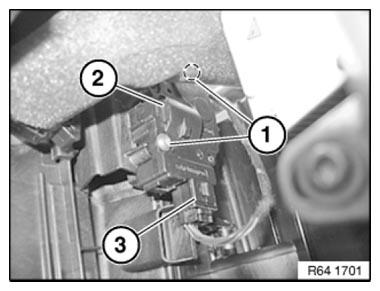

Release screws (1).
Remove actuator drive (2) and unlock and disconnect plug connection (3).
Replacement:
Servomotors must be readdressed in the event of replacement!
Addressing can only be carried out with the BMW diagnosis system.
Service functions:
- Body
- Heating and air conditioning function
- Flap motors
- Readdress flap motors
