64 11 835 Replacing actuator drive for left blending flap

Necessary preliminary tasks

• Remove INSTRUMENT PANEL TRIM .

Position of actuator drive:

OVERVIEW OF ACTUATOR DRIVES ON HEATING AND AIR-CONDITIONING UNIT .

Release screws (1) and remove earth cable.

Installation note:

Replace screws (1).

Take off holder (2).

Fig 1: Identifying Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip connecting piece (1) and slide downwards.

Installation note:

Latching of connecting piece (1) must be felt.

Fig 2: Uncliping Connector Piece

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Feed out left footwell air outlet duct (2).

Fig 3: Identifying Left Footwell Air Outlet Duct And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip deflection arm (1) from deflector (5).

Release screws (4).

Remove actuator drive (2) and unlock and disconnect plug connection (3).

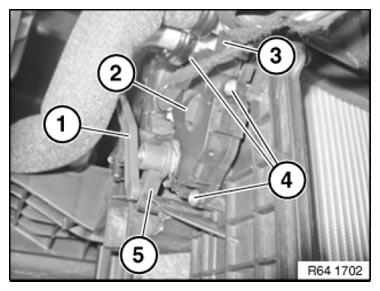

Fig 4: Identifying Actuator Drive, Plug Connection, Deflection Arm And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Servomotors must be readdressed in the event of replacement!

Addressing can only be carried out with the BMW diagnosis system.

Service functions:

• Body
• Heating and air conditioning function
• Flap motors
• Readdress flap motors
