64 11 832 Replacing servodrive for middle right ventilation flap (High A/C system)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove CENTRAL INFORMATION DISPLAY .
Remove RIGHT GLOVEBOX WITH HOUSING .

Position of actuator drive:

OVERVIEW OF ACTUATOR DRIVES ON HEATER/AIR CONDITIONER

Release screw (1).

Unfasten screws (2).

Installation:

Replace screws (2).

Take off holder (3).

Fig 1: Identifying Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

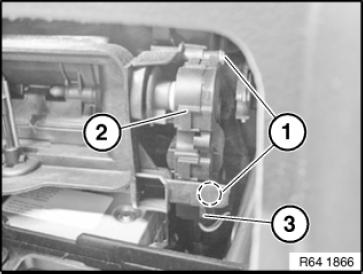

Release screws (1).

Remove actuator drive (2).

Unlock plug connection (3) and disconnect.

Fig 2: Identifying Screws, Actuator Drive And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Servomotors must be re-addressed in the event of replacement!

Addressing can only be carried out with the BMW diagnosis system.

Service functions:

Body
Heating and A/C function
Flap motors
Re-address flap motors
