64 11 831 Replacing actuator drive for outer right ventilation flap

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove INSTRUMENT PANEL TRIM .

Position of actuator drive:

OVERVIEW OF ACTUATOR DRIVES ON HEATING AND AIR-CONDITIONING UNIT .

Release screws (1).

Remove actuator drive (2) and unlock and disconnect plug connection (3).

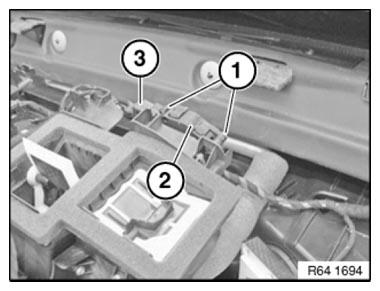

Fig 1: Identifying Actuator Drive, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Servomotors must be readdressed in the event of replacement!

Addressing can only be carried out with the BMW diagnosis system.

Service functions:

Body
Heating and air conditioning function
Flap motors
Readdress flap motors
