64 11 823 Replacing servodrive for right rear cabin air blending flap

Necessary preliminary tasks

• Remove RIGHT GLOVEBOX WITH HOUSING .

Position of actuator drive:

OVERVIEW OF ACTUATOR DRIVES ON HEATER/AIR CONDITIONER

Release screw (1).

Unfasten screws (2).

Installation:

Replace screws (2).

Take off holder (3).

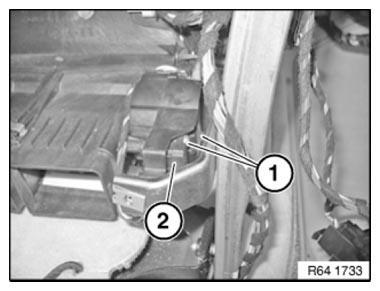

Fig 1: Identifying Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip connector piece (1) and slide downwards.

Installation:

Latching of connector piece (1) must be felt.

Fig 2: Uncliping Connector Piece

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove air vent duct (2).

Installation:

Ensure cable routing along air vent duct (2) is correct

Fig 3: Identifying Right Footwell Air Outlet Duct And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove servodrive (2) and unlock and disconnect associated plug connection.

Fig 4: Identifying Actuator Drive And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Servomotors must be re-addressed in the event of replacement!

Addressing can only be carried out with the BMW diagnosis system.

Service functions:

• Body
• Heating and A/C function
• Flap motors
• Re-address flap motors
