64 11 263 Removing and installing/replacing rear cabin fan
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove complete CENTRE CONSOLE .

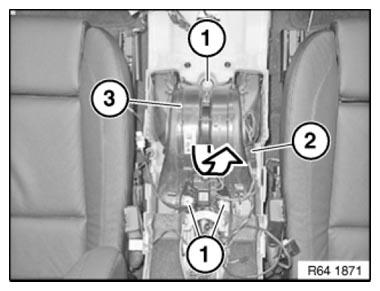

Release screws (1).
Unfasten plug connection (2) and disconnect.
Remove fan (3) in direction of arrow.
Installation:
Make sure fan is correctly seated on air ducts.
Replacement
Remove REAR COMPARTMENT BLOWER CONTROLLER .
