64 11 794 Removing and installing/replacing controller for rear cabin fan
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove complete CENTRE CONSOLE .

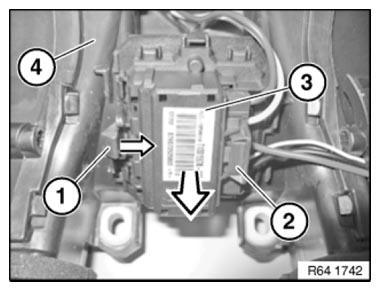

Unlock catch (1) and at same time slide controller (3) in direction of arrow in downward direction.
Remove controller (3) from rear cabin fan housing (4).
Unfasten plug connection (2) and disconnect.
