64 53 518 Replacing desiccant insert for A/C system (capacitor removed)

Special tools required:

• 00 9 030

Restart engine only when A/C system has been correctly filled.

Follow INSTRUCTIONS  for opening and replacing parts in refrigerant circuit.

If air conditioning system is opened for more than 24 hours:

replace desiccant insert for air conditioning system

Follow INSTRUCTIONS ON REPLACING DESICCANT INSERT .

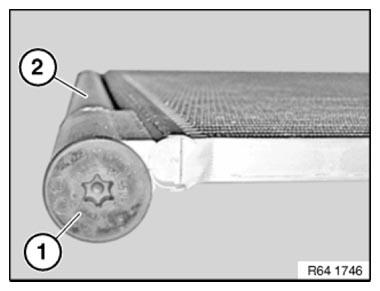

Remove protective cap (1) from capacitor for the heating and air conditioning system (2).

Fig 1: Identifying Protective Cap And Capacitor

Courtesy of BMW OF NORTH AMERICA, INC.

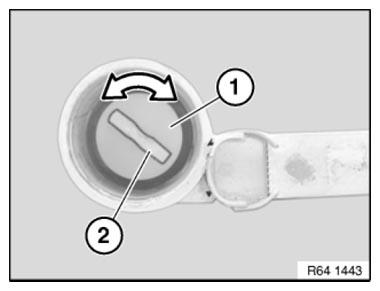

Press sealing cap (1) inwards and remove circlip (2).

Fig 2: Pressing Sealing Cap Inwards

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the sealing cap (2) from capacitor of the heating and air conditioning system (3) with an inserted screw (1).

Fig 3: Removing Sealing Cap From Capacitor Of Heating And Air Conditioning System

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace sealing rings (1).

Use special tool 00 9 030 to fit sealing rings (1) without damaging them.

Fig 4: Fitting Sealing Rings Using Special Tool (00 9 030)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove desiccant insert for heating and air conditioning system (1) in direction of arrow from capacitor of the heating and air conditioning system (2).

Fig 5: Inserting Heating And Air Conditioning System

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

• Add final details to vehicle
• EVACUATE AND FILL AIR CONDITIONING SYSTEM .
