34 32 980 Replacing rear left or right brake hose

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Read and comply with GENERAL INFORMATION .

After completing work: BLEED BRAKING SYSTEM .

Press clutch pedal down to floor and secure with pedal support.

NOTE: The pedal support may only be released when the brake lines are reconnected.

This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

Fig 1: Locating Brake Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Grip brake hose at square head (2) so that connecting piece can not rotate in retaining bracket.

Disconnect brake hose from brake line (1).

Installation:

Tightening torque 34 32 1AZ .

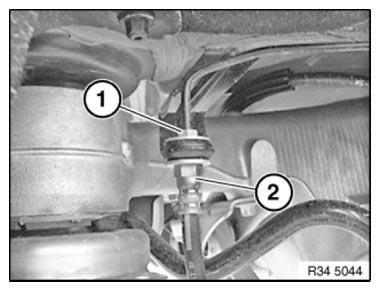

Fig 2: Identifying Brake Line And Square Head

Courtesy of BMW OF NORTH AMERICA, INC.

Detach brake hose from brake caliper (1).

Installation:

First tighten brake hose on brake caliper.

Tightening torque 34 32 3AZ .

IMPORTANT: Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.

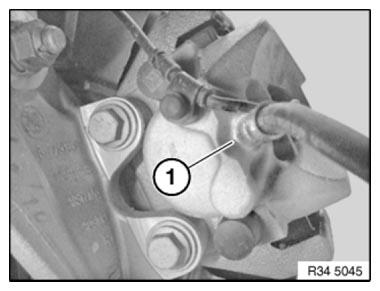

Fig 3: Identifying Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.
