17 11 000 Removing and installing radiator (N63 B40/B44 O 0/1)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of scalding!
Only perform this repair work after engine has cooled down.

IMPORTANT: Wear safety goggles and protective gloves.

Necessary preliminary tasks

Remove FAN COWL.
Drain COOLANT.
Unlock and detach coolant hoses on radiator.

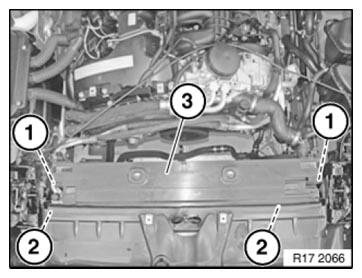

Release screws (1) on left and right from cover (3).

Tightening torque 17 10 1AZ.

Release screws (2) behind sealing lip.

Tightening torque 17 10 1AZ.

Lift out cover (3).

Fig 1: Identifying Radiator Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

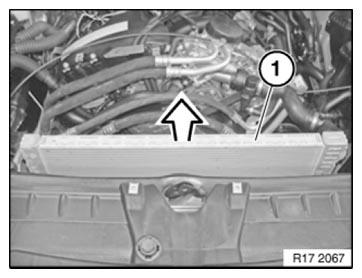

Remove radiator (1) towards top.

Fig 2: Removing Radiator Towards Top

Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle.

FILL THE COOLING SYSTEM.

Visual inspection of cooling system for tightness.
