61 71 030 Removing and installing/renewing all washer jets of windscreen washer system

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

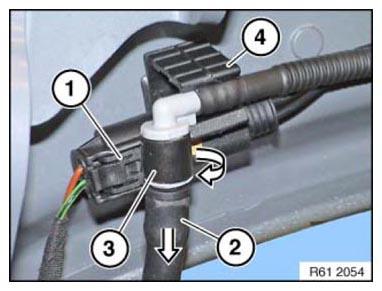

Turn clamp (3) in direction of arrow and washer fluid line (2) in direction of arrow.

Disconnect plug connection (1) and remove from holder (4).

Fig 1: Turning Washer Fluid Line Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

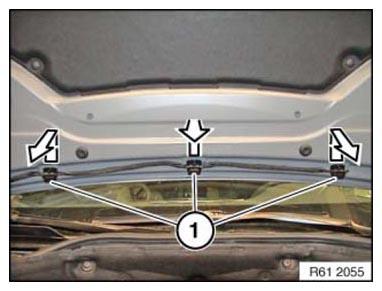

Press all washer jets (1) in direction of arrow upwards and remove.

Fig 2: Pressing Washer Jets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

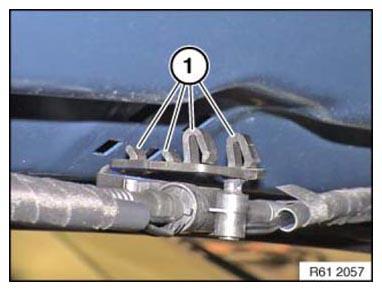

Retaining lugs (1) must not be damaged.
Check ADJUSTMENT OF WASHER JETS and correct if necessary.
Observe FILLING CAPACITY FOR WINDSCREEN WASHER SYSTEM .

Fig 3: Identifying Retaining Lugs
Courtesy of BMW OF NORTH AMERICA, INC.
