61 71 004 Adjusting washer jets for windscreen washer system

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Triple nozzle system

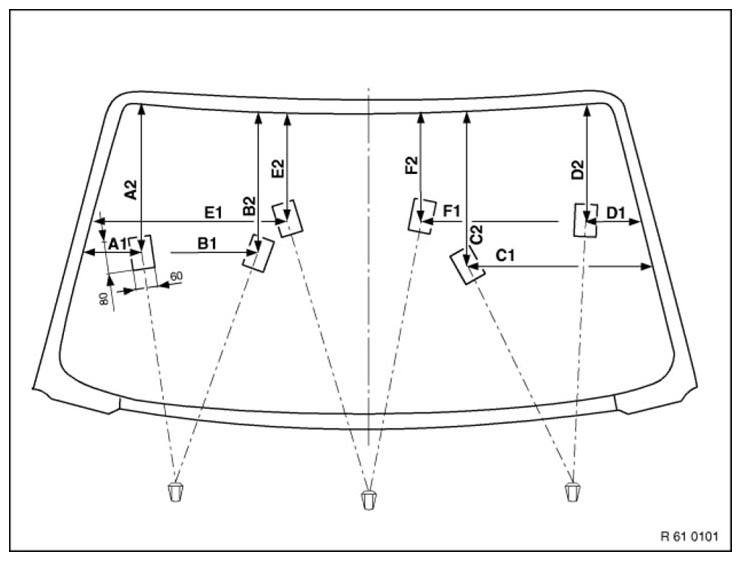

Fig 1: Identifying Washer Spray Jet Adjusting Values (Triple Nozzle System)

Courtesy of BMW OF NORTH AMERICA, INC.

The spray jets should hit the middle of the wiping area.

Adjustment values in mm

A1= 200	D1= 230
A2= 400	D2= 350
B1= 400	E1= 500
B2= 400	E2= 350
C1= 450	F1= 550
C2= 450	F2= 350

NOTE: If necessary, remove adhesive residue from windscreen.

Fill up with washer fluid.

NOTE: Washer jets are preset; in case of customer complaint, the setting can be adjusted as needed.

Changes in the setting must take into account the possible driving situations (high/low speed; with/without washing additive) and must be performed with care.

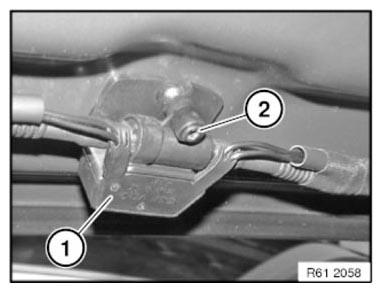

If necessary, adjust left/right or middle washer jet (1) by way of screw (2).
