61 31 166 Replacing switch combination for seat adjustment (comfort seat in rear compartment)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks

REMOVE LEFT SEAT BACK PITCH ADJUSTMENT TRIM .

NOTE: Bolts (1) are locked with nuts.

Release screws (1).

Remove switch combination (2) for seat adjustment.

Disconnect plug connection behind.

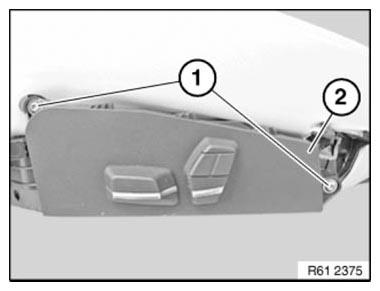

Fig 1: Identifying Seat Adjustment Switch Combination And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure switch combination for seat adjustment (2) is correctly seated.
