61 35 095 Removing and installing control unit/module for seat heating (rear seat)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks

REMOVE AND INSTALL REAR SEAT .

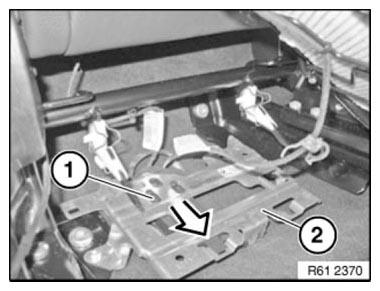

Unlock control unit for seat heating (1) in direction of arrow.

Pull control unit for seat heating (1) backward out of holder (2).

Fig 1: Pulling Out Seat Heating Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

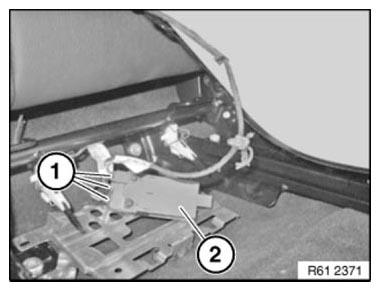

Unlock plug connections (1) and disconnect.

Remove control unit for seat heating (2).

Fig 2: Identifying Seat Heating Control Unit With Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

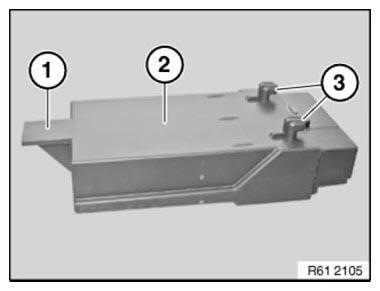

Make sure mount (1) and retaining lugs (3) of control unit for seat heating (2) are correctly seated.

Fig 3: Identifying Mount, Retaining Lugs And Control Unit For Seat Heating

Courtesy of BMW OF NORTH AMERICA, INC.
