13 90 500 Replacing tank venting valve (N63)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Check stored fault message.
Switch off ignition.
Remove FAN COWL.

Unlock connector (1) and remove.

Unlock hose (2) and detach.

Unlock hose (3) further below on intake manifold and detach.

Detach tank vent valve (4) from holder and remove.

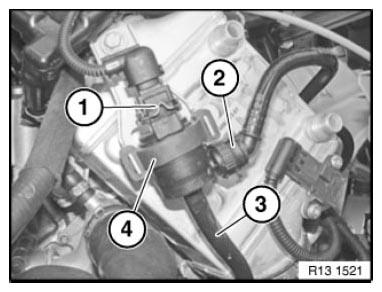

Fig 1: Identifying Tank Vent Valve With Connector And Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock hose (1) on intake manifold and detach.

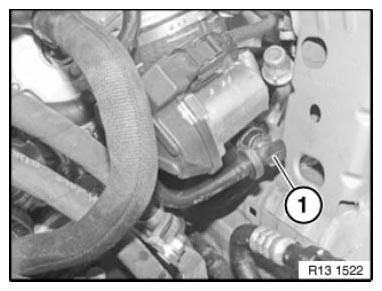

Fig 2: Identifying Intake Manifold Hose

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Read out fault memory of DME control unit.
Delete fault memory.
