32 33 000 Removing and installing/replacing steering wheel

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Chassis/wheel alignment is not necessary after the steering wheel has been removed and installed or replaced.

Necessary preliminary tasks

Remove AIRBAG UNIT .

Move wheels/steering wheel into straight-ahead driving position.

Disconnect plug connection (1).

Release screw (2) and remove steering wheel.

Installation note:

Make sure connecting line(s) is/are correctly laid.

Tightening torque 32 33 1AZ.

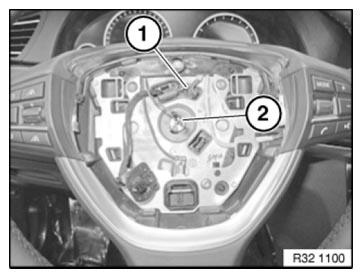

Fig 1: Identifying Steering Wheel Plug Connection And Screw (32 33 010)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Before fitting steering wheel on steering column, ensure correct cable routing.

Align steering wheel by way of marking (1) to steering column marking (2) and attach.

Fig 2: Identifying Marks On Steering Column (32 33 010)

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Modify DESIGN COVER .
Modify MULTIFUNCTION STEERING WHEEL SWITCH .
If necessary, modify STEERING WHEEL MODULE CONTROL UNIT .
