Necessary preliminary tasks

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Remove UNDERBODY PROTECTION .
Remove ACTIVE STABILIZER from front axle carrier and hang up.
Remove front pressure line from active stabilizer
Remove ARS EXPANSION HOSE PART 3 .

Unfasten screw fitting (1).

Tightening torque 37 13 5AZ. .

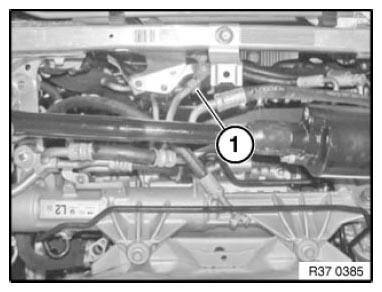

Fig 1: Identifying ARS Expansion Screw Fitting

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on line holder.

Feed out line upwards to remove.

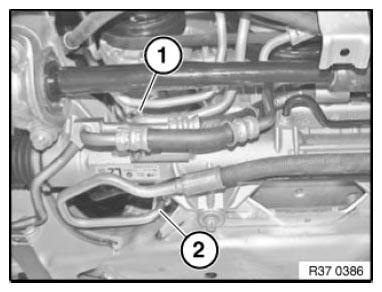

Fig 2: Identifying Line Holder Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When assembling, make sure that in succession only the sealing plugs of the line to be fitted are removed.

When fitting lines, do not tilt connectors (sealing rings!) and connect fully before screwing.

Do not replace sealing rings on hydraulic lines.

Replace affected line if sealing ring is damaged.
