Necessary preliminary tasks

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Remove UNDERBODY PROTECTION .
Release ACTIVE STABILIZER from front axle carrier and tie up.
Remove front pressure line from active stabilizer.
Remove ARS EXPANSION HOSE PART 3 .

Release both nuts (1) from line holder.

Release screw connection (2) and remove line.

Tightening torque 37 13 5AZ.

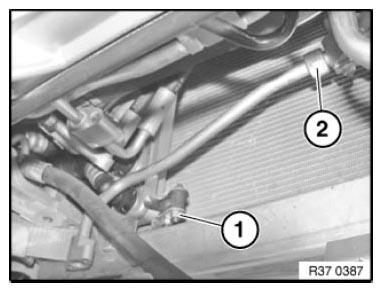

Fig 1: Identifying Pressure Line Nut And Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.
