32 11 100 Replacing gaiter for steering box on left or right

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The hydraulic steering gear must be replaced if the polished surface of the rack is damaged (e.g. by corrosion)!

Necessary preliminary tasks

Remove UNDERBODY PROTECTION
Remove TRACK ROD END

Clean track rod.

Release band clamp (1) and EAR CLIP (3).

Detach gaiter (2) from track rod.

Installation note:

Clean rack and check surface for damage (e.g. by corrosion).

Clean track rod and apply grease to taper.

NOTE: This ensures that the gaiter is not rotated when the track rod is rotated.

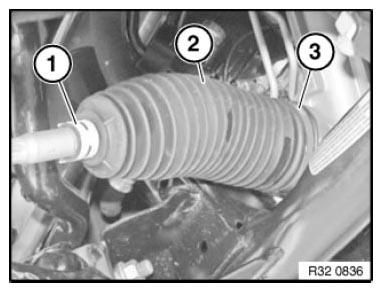

Fig 1: Identifying Gaiter, Band Clamp And Ear Clip

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Perform CHASSIS/WHEEL ALIGNMENT CHECK .
