Procedure, lane/camber adjustment (in design position)
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Unit of measurement in diagram: [min]

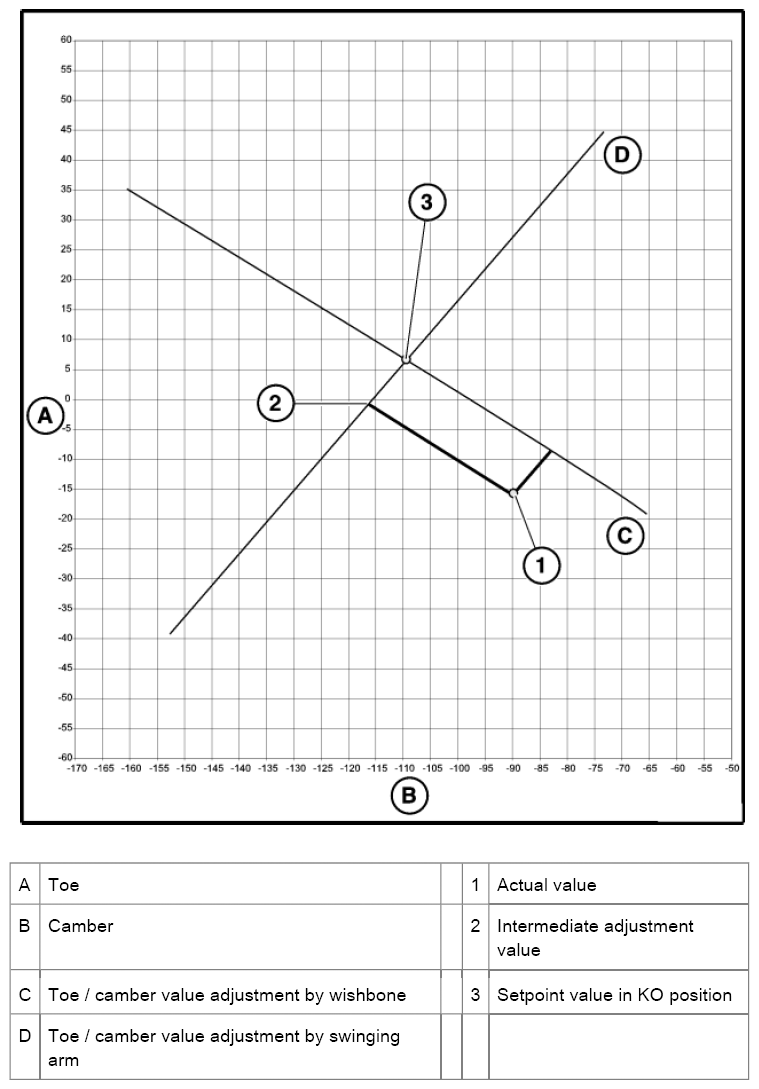

Description using the example value entered at the top of the diagram:
- Read off actual value (1) for toe/camber on wheel/axle alignment analyzer and enter in diagram
(in example: toe -16', camber -90')
- Drag parallel line to "Wishbone" line (C) through entered actual value (1)
- Point of intersection (2) on "Swinging arm" line (D) produces toe/camber intermediate adjustment value
(in example: toe -2', camber -117')
- Adjust intermediate adjustment value (2) by turning adjusting screw on wishbone
- Refer to operation Adjusting on wishbone .
- Adjust setpoint value (3) for toe/camber by turning adjusting screw on swinging arm (toe/camber value moves on line (D))
- Refer to operation Adjusting on swinging arm .
