Adjusting on swinging arm

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Replace nut (1) prior to adjustment and join to 5 Nm.

Turn eccentric bolt (2) to adjust setpoint value.

Tighten nut (1).

Tightening torque 33 32 2AZ.

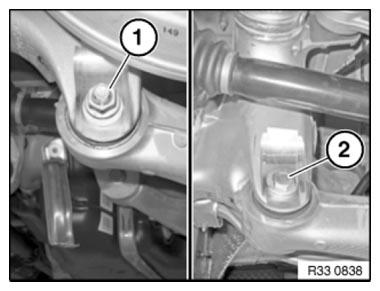

Fig 1: Identifying Swinging Arm Nut And Eccentric Bolt
G08420822Courtesy of BMW OF NORTH AMERICA, INC.
