32 00 601 Adjusting toe-in on front axle

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Camber and toe-in influence each other. Adjust the toe-in first in order to simplify the adjustment procedure.

Version with active steering:

Align steering wheel.
Set total steering angle by means of the service function CARRY OUT INITIAL OPERATION/ADJUSTMENT FOR ACTIVE STEERING to "zero".
If necessary, secure with steering wheel arrester.

Version without active steering:

Remove front UNDERBODY PROTECTION .

Move steering into straight-ahead driving position by means of markings on cap (1) and steering box (2).

Align steering wheel and secure with steering wheel arrester.

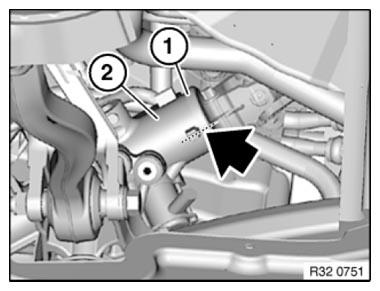

Fig 1: Locating Straight-Ahead Driving Position Mark On Steering Box Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Clean thread on track rod.

Slacken clamping nut (2), gripping track rod end (1) in the process.

Remove clamp (4).

Turn track rod (3) to adjust toe-in to setpoint value.

Version with active steering: Check total steering angle; if necessary, set to "zero".

Check toe values, repeat adjustment if necessary.

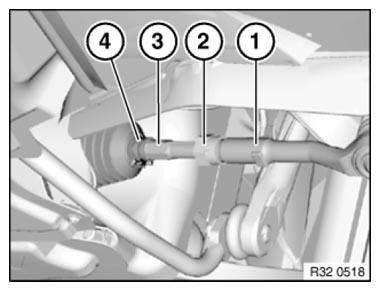

Fig 2: Identifying Track Rod With Clamping Nut, Track Rod End And Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down clamping nut (2).

Tightening torque 32 21 2AZ.

Fit clamp (4).

After installation

Check directional stability of vehicle; if necessary, repeat toe-in adjustment.
