11 65 185 Removing and Installing/Replacing Heat Shield At Bottom (N63O1)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove Both Exhaust Turbochargers. See RIGHT TURBO (CYLINDERS 1-4) and LEFT TURBO (CYLINDERS 5-8) .
Remove Both Exhaust Manifolds. See LEFT EXHAUST MANIFOLD and RIGHT EXHAUST MANIFOLD .
Remove ALTERNATOR .

Release Vacuum Line (1) From Retaining Clip (2).

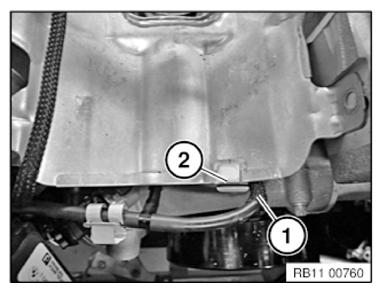

Fig 1: Identifying Vacuum Line and Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Release Screws (1).

Tightening torque 11 65 5AZ .

Remove Heat Shield (2) Towards Top.

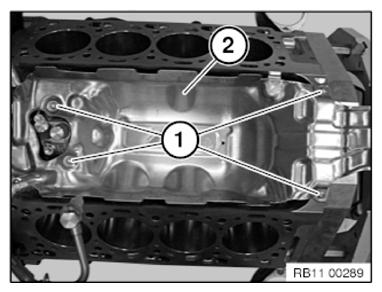

Fig 2: Identifying Heat Shield and Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release Screws (1).

Tightening torque 11 65 6AZ .

Remove Heat Shield (2).

Fig 3: Identifying Heat Shield and Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble Engine.
