11 36 655 Removing and Installing/Replacing Both Solenoid Valves (N55)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: It Is Essential To Observe Conditions of Absolute Cleanliness When Removing and Installing The Inlet and Exhaust Solenoid Valves.
Possible Malfunction If Valves Are Contaminated:

Rough Running
OBD Fault Entry
Exhaust Emission Behavior.
Low Engine Power

Necessary Preliminary Tasks:

Remove IGNITION COIL COVER .

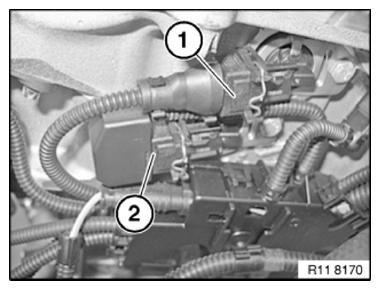

Disconnect Plug Connection (1) On Inlet Solenoid Valve.

Disconnect Plug Connection (2) On Exhaust Solenoid Valve.

Fig 1: Identifying Inlet and Exhaust Solenoid Valve Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

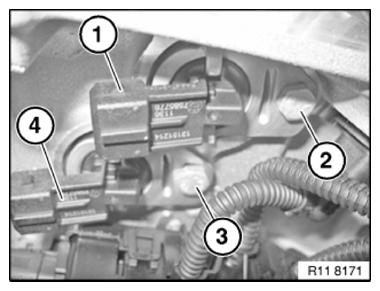

Release Screw (2).

Remove Inlet Solenoid Valve (1) with Holder Towards Front.

Release Screw (3).

Remove Exhaust Solenoid Valve (4) with Holder Approx. 10 Mm Towards Front.

Tightening torque 11 36 3AZ .

Fig 2: Identifying Solenoid Valves and Screws

Courtesy of BMW OF NORTH AMERICA, INC.

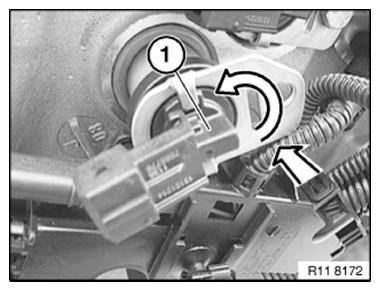

Turn Exhaust Solenoid Valve (1) Approx. 90° In Direction of Arrow Until Exhaust Solenoid Valve (1) Can Be Removed From The Front On Engine Wiring Harness.

Fig 3: Turning Exhaust Solenoid Valve

Courtesy of BMW OF NORTH AMERICA, INC.

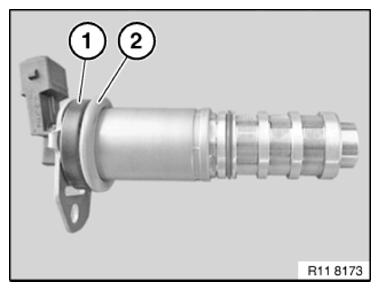

Remove O-Ring (2).

Remove Support Ring (1).

Installation:

Replace Support and O-Rings.

Fig 4: Identifying Support Ring and O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble Engine.

Check Function of DME.
