11 36 048 Removing and Installing/Replacing Inlet and Exhaust Adjustment Units On Right Side (N63O1)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

(Cylinder Bank 1 To 4)

Necessary Preliminary Tasks:

Read Fault Memory and Make A Documentary Record
Remove RIGHT CYLINDER HEAD COVER .
Remove RIGHT GEAR CASE COVER .
Check TIMING .

IMPORTANT: If Special Tool 2 249 117 Can Not Be Fitted, It Is Necessary To Counterhold Hexagon Head of Respective Camshaft When Releasing Central Bolt.

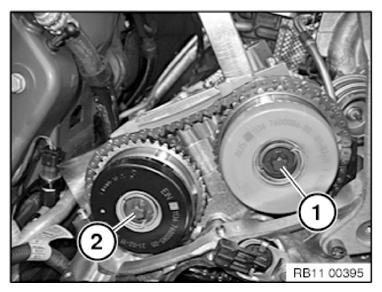

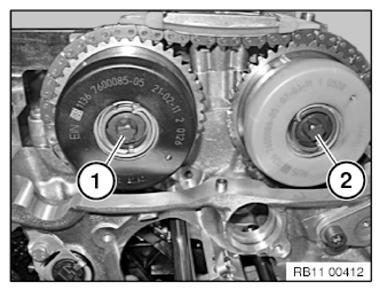

Release Central Bolts (1 and 2) of Intake and Exhaust Camshaft Adjusters.

Installation Note:

Replace Central Bolts After Releasing.

Fig 1: Identifying Central Bolts of Intake and Exhaust Camshaft Adjusters

Courtesy of BMW OF NORTH AMERICA, INC.

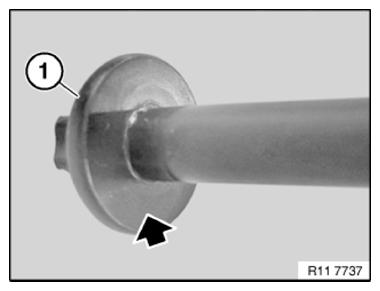

IMPORTANT: Check Whether Head of Central Bolt (1) Is Greased (See Arrow In Illustration).

Installation Note:

Coat Contact Surface of New Central Bolt (1) with 4.4 Copper Paste.

Fig 2: Checking Central Bolt Head To See If Required Grease Is Present

Courtesy of BMW OF NORTH AMERICA, INC.

Release Screw (1).

Remove Special Tool 2 249 162 .

Fig 3: Mounting Special Tool 2 249 162 At Position of Chain Tensioner and Pre-Tensioning Screw To 0.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Release Screws (1).

Remove Upper Tensioning Rail (2).

Graphic Shows Engine N63.

Fig 4: Identifying Sliding Rail and Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove Central Bolt (1) of Exhaust Adjustment Unit.

Installation Note:

Replace Central Bolts After Releasing.

Fig 5: Identifying Central Bolts of Intake and Exhaust Camshaft Adjusters

Courtesy of BMW OF NORTH AMERICA, INC.

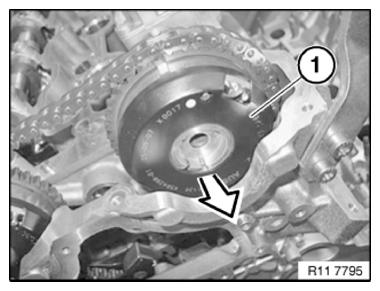

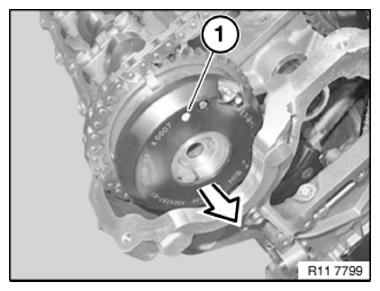

Detach Exhaust Adjustment Unit (1) In Direction of Arrow From Exhaust Camshaft.

Graphic Shows Engine N63.

Fig 6: Detaching Exhaust Camshaft Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

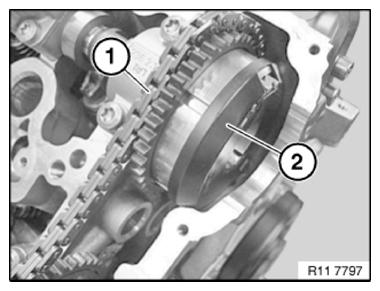

Feed Out Exhaust Adjustment Unit (2) From Timing Chain (1).

Lift Out Exhaust Adjustment Unit (2).

Graphic Shows Engine N63.

Fig 7: Identifying Exhaust Camshaft Adjustment Unit and Timing Chain

Courtesy of BMW OF NORTH AMERICA, INC.

Remove Central Bolt (2) of Inlet Adjustment Unit.

Installation Note:

Replace Central Bolts After Releasing.

Fig 8: Identifying Central Bolts of Intake and Exhaust Camshaft Adjusters

Courtesy of BMW OF NORTH AMERICA, INC.

Detach Inlet Adjustment Unit (1) In Direction of Arrow From Inlet Camshaft.

Graphic Shows Engine N63.

Fig 9: Detaching Intake Camshaft Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Feed Out Inlet Adjustment Unit (2) From Timing Chain (1).

Lift Out Inlet Adjustment Unit (2).

Graphic Shows Engine N63.

Fig 10: Identifying Exhaust Camshaft Adjustment Unit and Timing Chain

Courtesy of BMW OF NORTH AMERICA, INC.

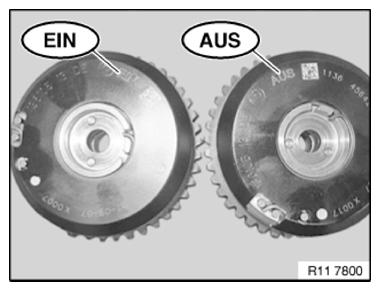

IMPORTANT: Danger of Mix-Up:
Intake and Exhaust Camshaft Adjusters Are Different.
Mixing Up The Inlet and Exhaust Adjustment Units Will Cause Damage To The Engine.

Intake Adjuster Is Marked with {EIN }.
Exhaust Camshaft Adjuster Is Marked with {AUS }.

Fig 11: Identifying Markings On Intake and Exhaust Camshaft Adjusters
Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

Coat Contact Surface of New Central Bolt (1) with 4.4 Copper Paste.

Fig 12: Checking Central Bolt Head To See If Required Grease Is Present

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Position of Adjustment Units In Relation To Timing Chain Can Be Freely Selected.

Feed Adjuster Into Timing Chain and Position On Camshafts.

Insert Central Bolts (1 and 2) On Adjustment Units Without Gaps.

Release Central Bolts (1 and 2) By 45° .

Fig 13: Identifying Central Bolts of Intake and Exhaust Camshaft Adjusters

Courtesy of BMW OF NORTH AMERICA, INC.

Position Top Slide Rail (2) and Secure with Screws (1).

Tightening torque: 11 31 4AZ .

Fig 14: Identifying Sliding Rail and Screws

Courtesy of BMW OF NORTH AMERICA, INC.

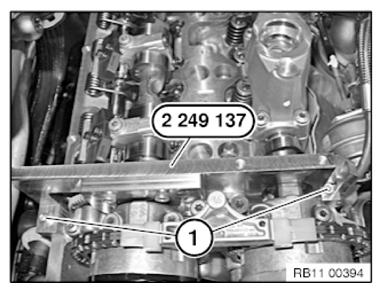

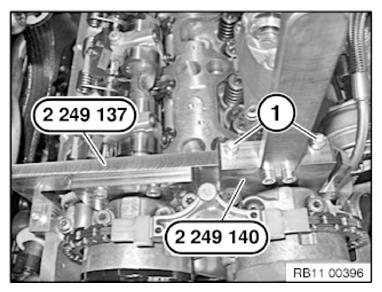

Position Special Tool 2 249 137 On Intake Camshaft and Secure with Screws (1).

Fig 15: Fitting Special Tool 2 249 137 On Intake Camshaft and Checking Timing Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Position Special Tool 2 249 140 On Special Tool 2 249 140 and Secure with Screws (1).

Fig 16: Positioning Special Tools On Exhaust Camshaft and Checking Timing Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

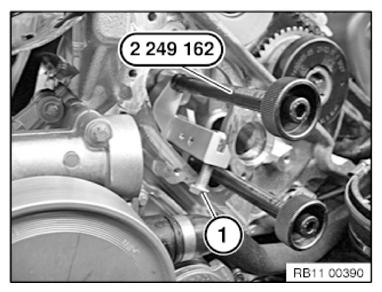

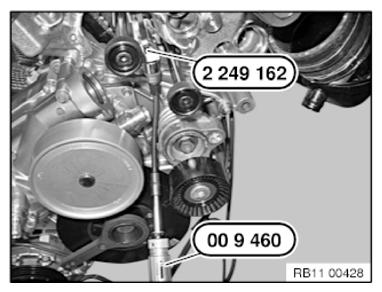

Screw In Special Tool 2 249 162 .

Pretension Timing Chain with Special Tool 2 249 162 .

Pretension Timing Chain with Special Tool 00 9 250 or 00 9 460 To 0.6 Nm .

Fig 17: Pretensioning Special Tool 2 249 162 To 0.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Loosen Central Bolts (1 and 2) By Maximum 45°.

Fig 18: Identifying Central Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove Special Tool 11 9 190 .

IMPORTANT: Crank Engine Back At Central Bolt Through 45°.

Fig 19: Turning Engine At Central Bolt and Positioning Special Tool 11 9 190 In Gear Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Position Engine with Special Tool 11 9 190 In Front of Special Tool 11 8 570 As Illustrated In The Graphic.

Fig 20: Positioning Engine Using Special Tool 11 9 190 In Front of Special Tool 11 8 570

Courtesy of BMW OF NORTH AMERICA, INC.

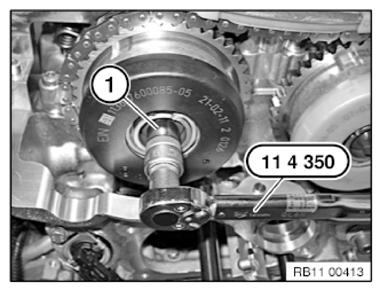

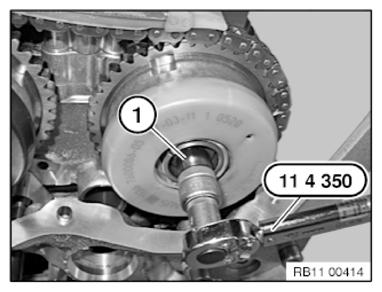

Join Central Bolt (1) of Intake Camshaft with Special Tool 11 4 350 .

Joining Torque 5 Nm .

Fig 21: Inserting Central Bolt of Intake Camshaft Using Special Tool 11 4 350

Courtesy of BMW OF NORTH AMERICA, INC.

Join Central Bolt (1) of Exhaust Camshaft with Special Tool 11 4 350 .

Joining Torque 5 Nm .

Fig 22: Inserting Central Bolt of Exhaust Camshaft Using Special Tool 11 4 350

Courtesy of BMW OF NORTH AMERICA, INC.

Remove Special Tool 11 9 190 .

Fig 23: Positioning Engine Using Special Tool 11 9 190 In Front of Special Tool 11 8 570

Courtesy of BMW OF NORTH AMERICA, INC.

Turn Engine At Central Bolt Further Until Special Tool 11 9 190 Gear Case Cover Can Be Positioned.

The Engine Is Now 150° Before TDC Firing Position Cylinder 1.

Fig 24: Turning Engine At Central Bolt and Positioning Special Tool 11 9 190 In Gear Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

Tighten Central Bolts Beginning with the Intake Camshaft.

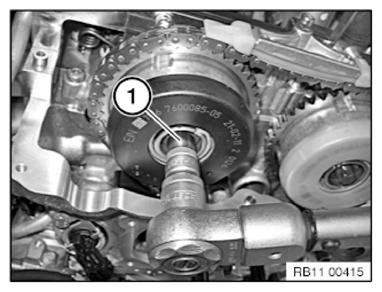

Insert Central Bolt (1) of Intake Camshaft with Torque.

Tightening torque of 30 Nm

Fig 25: Inserting Central Bolt of Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

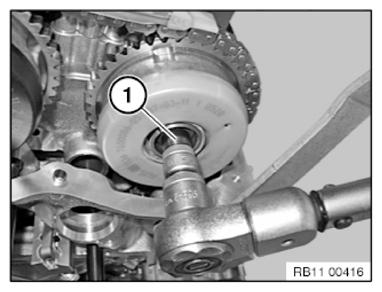

Insert Central Bolt (1) of Exhaust Camshaft with Torque.

Tightening torque of 30 Nm

Fig 26: Inserting Central Bolt of Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

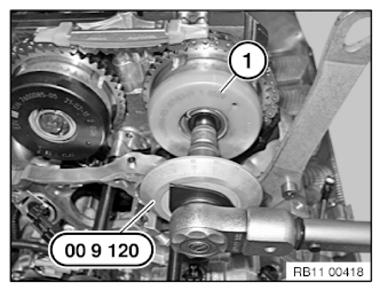

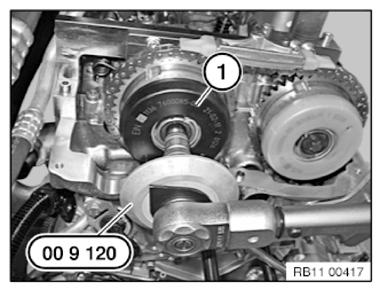

Secure Central Bolt (1) of Intake Camshaft with Special Tool 00 9 120 .

TORSION ANGLE ADJUSTMENT90° .

Fig 27: Inserting Central Bolt of Intake Camshaft Using Special Tool 00 9 120

Courtesy of BMW OF NORTH AMERICA, INC.

Secure Central Bolt (1) of Exhaust Camshaft with Special Tool 00 9 120 .

TORSION ANGLE ADJUSTMENT90°

Remove Special Tool 2 249 117 .

Fig 28: Inserting Central Bolt of Exhaust Camshaft Using Special Tool 00 9 120

Courtesy of BMW OF NORTH AMERICA, INC.

Check TIMING Again.

Remove All Special Tools.
