11 12 006 Removing and Installing/Sealing Right Cylinder Head Cover (N63O1)

Special Tools Required:

• 11 4 470 .

Necessary Preliminary Tasks:

• Disconnect NEGATIVE TERMINAL .
• Remove ACOUSTIC COVER .
• Remove Right-Hand INTAKE SILENCER HOUSING .
• Remove Right INTERCOOLER .
• Disconnect FUEL DELIVERY LINE .
• Detach Engine Wiring Harness and Wiring Harness for Injectors and Set Aside.
• Partially Release Positive Wire To The Alternator and Set Aside.
• Remove IGNITION COILS , Cylinders 1-4.
• Remove HIGH PRESSURE PUMP .
• Remove INJECTORS , Cylinders 1-4.
• Remove VACUUM PUMP .
• Remove CATALYTIC CONVERTER for Cylinders 1-4.

Remove Retaining Clips (1).

Partially Release The Filling Channel for The Washer System.

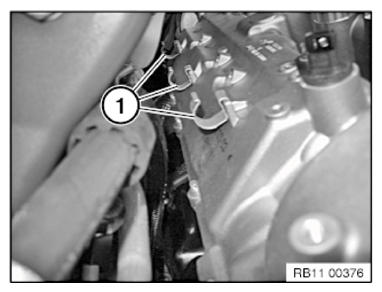

Fig 1: Identifying Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Release Screws (1).

Remove Heat Shield (2).

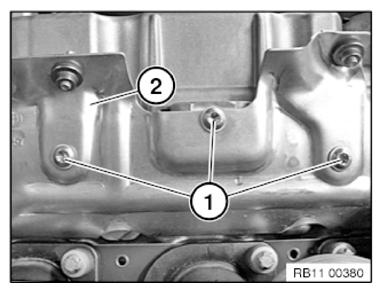

Fig 2: Identifying Heat Shield and Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release Screw Connections In The Sequence (16 To 1).

Remove Cylinder Head Cover.

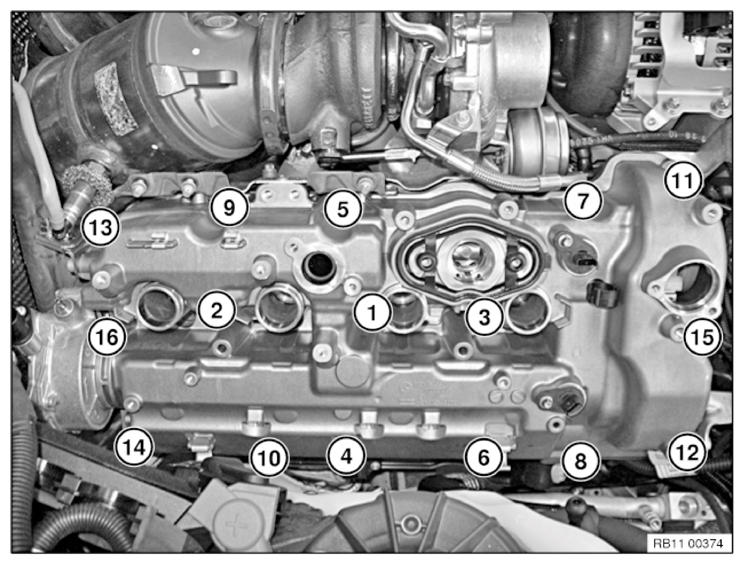

Fig 3: Right Cylinder Head Cover Bolts Tightening/Loosening Sequence (N63O1)

Courtesy of BMW OF NORTH AMERICA, INC.

Clean Sealing Surface (1 and 2) with Special Tool 11 4 470 .

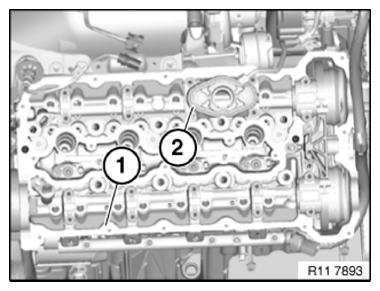

Fig 4: Locating Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

Replace Profile Seals (1 and 2).

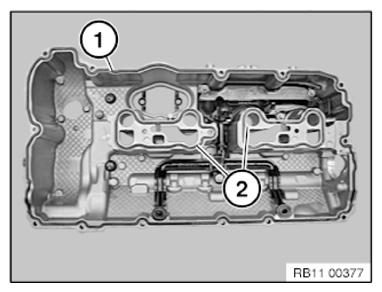

Fig 5: Locating Profile Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

Replace Sealing Ring (1) for Lubrication of Vacuum Pump.

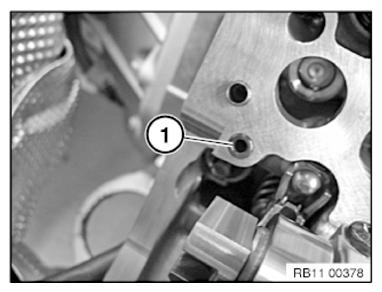

Fig 6: Identifying Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

It Is Important To Insert Screws (15 and 16) for Exact Positioning of The Camshaft Sensors.

Fit Cylinder Head Cover.

Position Screws (15 and 16).

Release Screws Again By A 90° Turn.

Secure Cylinder Head Cover In Sequence (1 To 16) In Two Work Steps.

Tightening torque 11 12 3AZ .

Fig 7: Right Cylinder Head Cover Bolts Tightening/Loosening Sequence (N63O1)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble Engine.
