11 36 047 Removing and Installing/Replacing Inlet and Exhaust Adjustment Units On Left Side (N63O1)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

(Cylinder Bank 5 To 8)

Necessary Preliminary Tasks:

Read Fault Memory and Make A Documentary Record.
Remove LEFT CYLINDER HEAD COVER .
Remove LEFT GEAR CASE COVER .
Check TIMING .

IMPORTANT: If Special Tool Can Not Be Fitted, Hexagon Head of Relevant Camshafts Must Be Counter-Supported When Releasing Central Bolt.

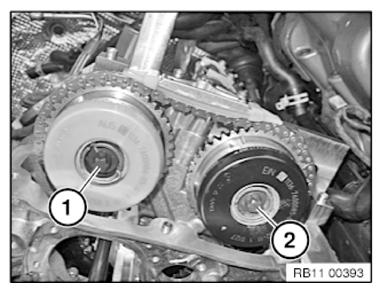

Release Central Bolts (1 and 2) of Intake Adjuster and Exhaust Camshaft Adjuster.

Installation Note:

Replace Central Bolts After Releasing.

Fig 1: Identifying Central Bolts of Intake and Exhaust Camshaft Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

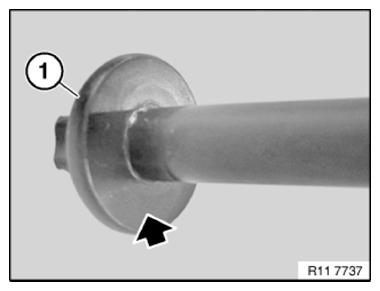

Coat Contact Surface of New Central Bolt (1) with 4.4 Copper Paste.

Fig 2: Checking Central Bolt Head To See If Required Grease Is Present

Courtesy of BMW OF NORTH AMERICA, INC.

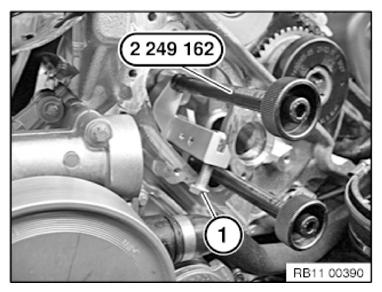

Release Screw (1).

Release Special Tool 2 249 162 At Knurled Screws and Remove.

Fig 3: Mounting Special Tool 2 249 162 At Position of Chain Tensioner and Pre-Tensioning Screw To 0.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

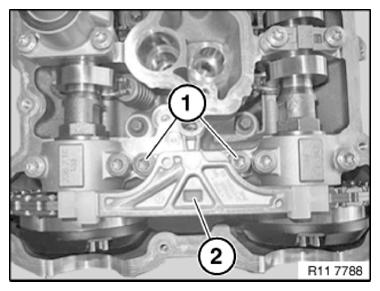

Release Screws (1).

Remove Upper Tensioning Rail (2).

NOTE: for Better Graphic Without Special Tools.

Graphic Shows Engine N63.

Fig 4: Identifying Upper Tensioning Rail and Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove Central Bolt (2) of Inlet Adjustment Unit.

Installation Note:

Replace Central Bolts After Releasing.

Fig 5: Identifying Central Bolts of Intake and Exhaust Camshaft Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

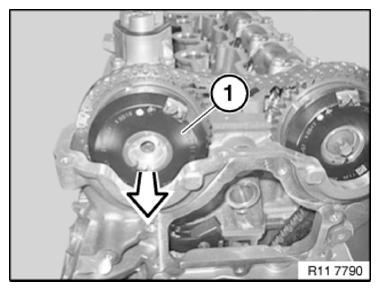

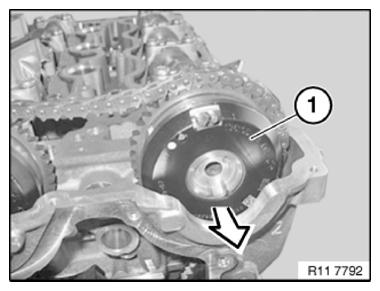

Detach Inlet Adjustment Unit (1) In Direction of Arrow From Inlet Camshaft.

Graphic Shows Engine N63.

Fig 6: Detaching Inlet Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

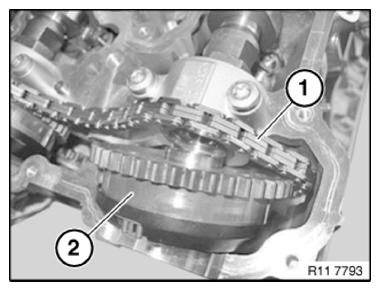

Feed Out Inlet Adjustment Unit (2) From Timing Chain (1).

Lift Out Inlet Adjustment Unit (2).

Graphic Shows Engine N63.

Fig 7: Identifying Inlet Camshaft Adjustment Unit and Timing Chain

Courtesy of BMW OF NORTH AMERICA, INC.

Detach Exhaust Adjustment Unit (1) In Direction of Arrow From Exhaust Camshaft.

Graphic Shows Engine N63.

Fig 8: Detaching Exhaust Camshaft Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Feed Out Exhaust Adjustment Unit (2) From Timing Chain (1).

Lift Out Exhaust Adjustment Unit (2).

Graphic Shows Engine N63.

Fig 9: Identifying Exhaust Camshaft Adjustment Unit and Timing Chain

Courtesy of BMW OF NORTH AMERICA, INC.

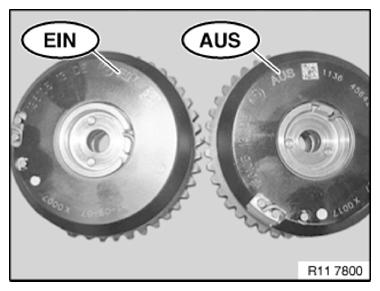

IMPORTANT: Danger of Mix-Up:
Intake and Exhaust Camshaft Adjusters Are Different.
Mixing Up The Inlet and Exhaust Adjustment Units Will Cause Damage To The Engine.

Intake Adjuster Is Marked with {EIN }.
Exhaust Camshaft Adjuster Is Marked with {AUS }.

Fig 10: Identifying Markings On Intake and Exhaust Camshaft Adjusters
Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

Coat Contact Surface of New Central Bolt (1) with 4.4 Copper Paste.

Fig 11: Checking Central Bolt Head To See If Required Grease Is Present

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Position of Adjustment Units In Relation To Timing Chain Can Be Freely Selected.

Feed Adjuster Into Timing Chain and Position On Camshafts.

Insert Central Bolts (1 and 2) On Adjustment Units Without Gaps.

Release Central Bolts (1 and 2) By 45° .

Fig 12: Identifying Central Bolts of Intake and Exhaust Camshaft Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

Fit Sliding Rail (2) and Secure with Screws (1).

Tightening torque: 11 31 4AZ .

Graphic Shows Engine N63.

Fig 13: Identifying Sliding Rail and Screws

Courtesy of BMW OF NORTH AMERICA, INC.

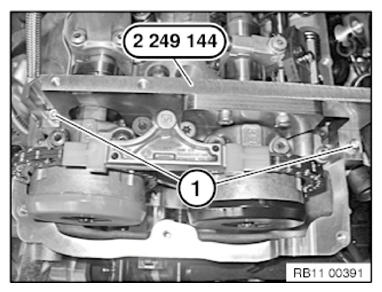

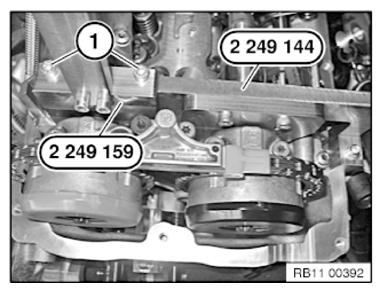

Position Special Tool 2 249 144 On Intake Camshaft.

Secure Special Tool 2 249 144 with Bolts (1).

Fig 14: Fitting Special Tool 2 249 144 On Intake Camshaft and Checking Timing Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Position Special Tool 2 249 159 On Exhaust Camshaft.

Screw Special Tool 2 249 159 To Special Tool 2 249 140 .

Fig 15: Positioning Special Tools On Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

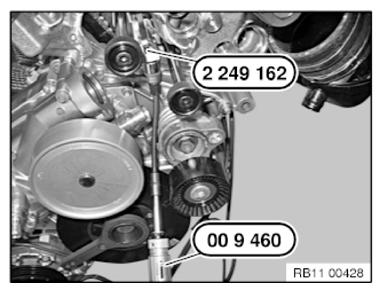

Screw In Special Tool 2 249 162 .

Pretension Timing Chain with Special Tool 2 249 162 .

Pretension Timing Chain with Special Tool 00 9 250 or 00 9 460 To 0.6 Nm .

Fig 16: Pretensioning Special Tool 2 249 162 To 0.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Release Central Bolts (1 and 2) By 45° .

Fig 17: Identifying Central Bolts of Intake and Exhaust Camshaft Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

Remove Special Tool 11 9 190 .

IMPORTANT: Crank Engine Back At Central Bolt Through 45°.

Fig 18: Turning Engine At Central Bolt and Positioning Special Tool 11 9 190 In Gear Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect Special Tools 11 9 190 From Gear Case Cover.

Rotate Crankshaft In Direction of Engine Rotation At Central Bolt Until Special Tool 11 8 570 Comes Into Contact In Front of Special Tool 11 9 190 .

Fig 19: Positioning Engine Using Special Tool 11 9 190 In Front of Special Tool 11 8 570

Courtesy of BMW OF NORTH AMERICA, INC.

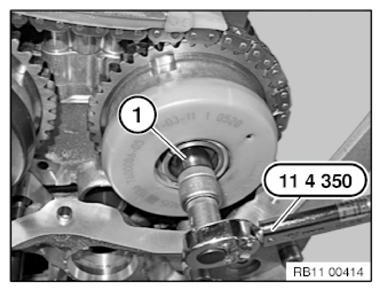

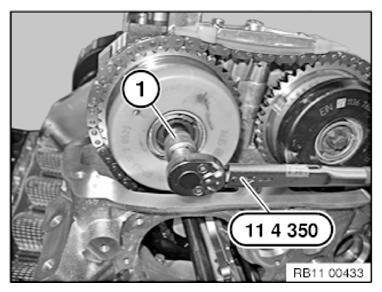

Insert Central Bolt (1) of Exhaust Camshaft with Special Tool 11 4 350 .

Joining Torque 5 Nm .

Fig 20: Inserting Central Bolt of Exhaust Camshaft Using Special Tool 11 4 350

Courtesy of BMW OF NORTH AMERICA, INC.

Insert Central Bolt (1) of Intake Camshaft with Special Tool 11 4 350 .

Joining Torque 5 Nm .

Fig 21: Inserting Central Bolt of Exhaust Camshaft Using Special Tool 11 4 350

Courtesy of BMW OF NORTH AMERICA, INC.

Remove Special Tool 11 9 190 .

Fig 22: Positioning Engine Using Special Tool 11 9 190 In Front of Special Tool 11 8 570

Courtesy of BMW OF NORTH AMERICA, INC.

Turn Engine At Central Bolt Further Until Special Tool 11 9 190 Can Be Positioned In Gear Case Cover.

The Engine Is Now 150° Before TDC Firing Position Cylinder 1.

Fig 23: Turning Engine At Central Bolt and Positioning Special Tool 11 9 190 In Gear Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

Tighten Central Bolts Beginning with the Exhaust Camshaft.

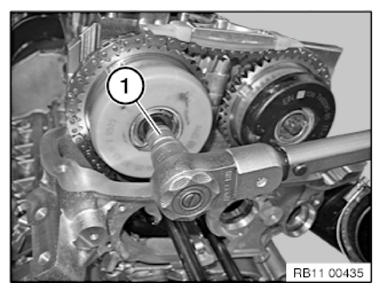

Insert Central Bolt (1) of Exhaust Camshaft with Torque.

Tightening torque of 30 Nm

Fig 24: Inserting Central Bolt of Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

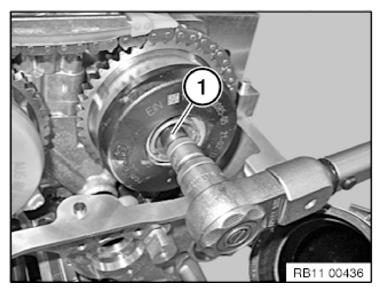

Insert Central Bolt (1) of Intake Camshaft with Torque.

Tightening torque of 30 Nm

Fig 25: Inserting Central Bolt of Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

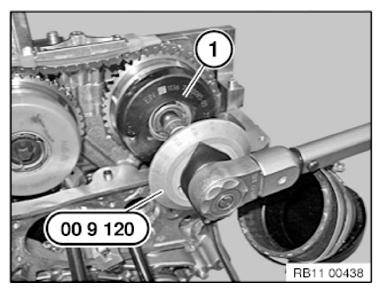

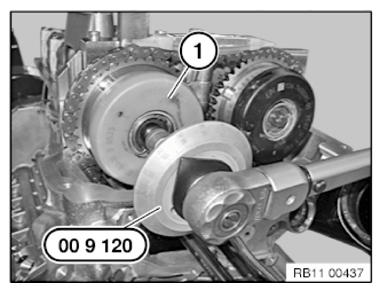

Insert Central Bolt (1) of Exhaust Camshaft with Special Tool 00 9 120 .

TORSION ANGLE ADJUSTMENT90° .

Fig 26: Inserting Exhaust Camshaft Central Bolt Using Special Tool (00 9 120)

Courtesy of BMW OF NORTH AMERICA, INC.

Insert Central Bolt (1) of Exhaust Camshaft with Special Tool 00 9 120 .

TORSION ANGLE ADJUSTMENT90° .

Remove Special Tool 2 249 117 .

Fig 27: Inserting Central Bolt of Intake Camshaft Using Special Tool 00 9 120

Courtesy of BMW OF NORTH AMERICA, INC.

Check TIMING Again.

Remove All Special Tools.
