11 12 005 Removing and Installing/Sealing Left Cylinder Head Cover (N63O1)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools Required:
- 11 4 470 .
Necessary Preliminary Tasks:
- Disconnect NEGATIVE TERMINAL .
- Remove ACOUSTIC COVER .
- Remove Left INTERCOOLER .
- Remove INTAKE SILENCER HOUSING .
- Remove Coolant Valve for Heater Feed Line.
- Disconnect FUEL DELIVERY LINE .
- Detach Wiring Harness for Injectors and Lay To One Side.
- Remove IGNITION COILS , Cylinders 5-8.
- Remove HIGH PRESSURE PUMP .
- Remove INJECTORS , Cylinders 5-8.
- Remove VACUUM PUMP .
- Remove CATALYTIC CONVERTER for Cylinders 1-4.
- Remove CATALYTIC CONVERTERS , Cylinders 5-8.

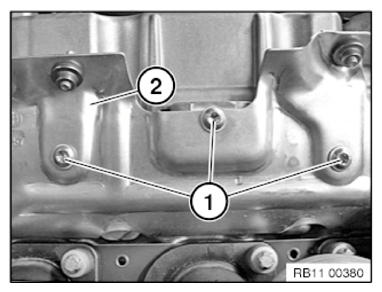

Release Screws (1).
Remove Heat Shield (2).
Tightening torque: 11 65 4AZ .

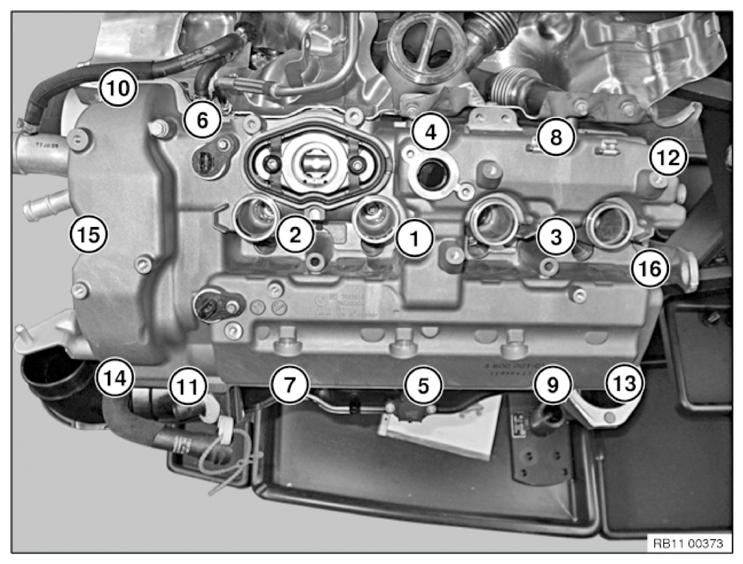

Release Screw Connections In The Sequence (16 To 1).
Remove Cylinder Head Cover.
Graphic Shows Engine S63T1.

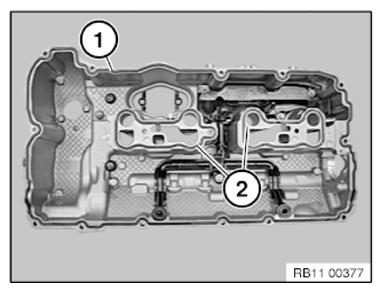

Clean Sealing Surface (1) with Special Tool 11 4 470 .
Graphic Shows Engine N63.
Installation Note:

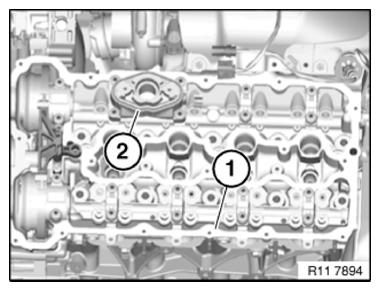

Replace Profile Seals (1 and 2) of Cylinder Head Cover.
Installation Note:
It Is Important To Join Screw (15 and 16) for Exact Positioning of The Camshaft Sensors.
Mount Cylinder Head Covers.
Position Screw (15 and 16).
Release Screws Again By A 90° Turn.
Secure Cylinder Head Cover In Sequence (1 To 17) In Two Work Steps.
Tightening torque 11 12 3AZ .
Assemble Engine.
