11 37 012 Removing and Installing/Replacing Left Intermediate Lever (N63O1)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

2 249 160 .
2 249 166 .

Cylinder Bank 2

(Cylinder Bank 5 To 8)

Necessary Preliminary Tasks:

Remove The Engine with FRONT AXLE .

Remove LEFT CYLINDER HEAD COVER .

Remove The Drive Belt for The AIR CONDITIONING COMPRESSOR .

Remove Tensioning Device for DRIVE BELT .

IMPORTANT: Set Intermediate Shaft To Zero Lift.
Turn The Intake Camshaft To The Point Where A Small Amount of Tension Arises At The Intermediate Lever.

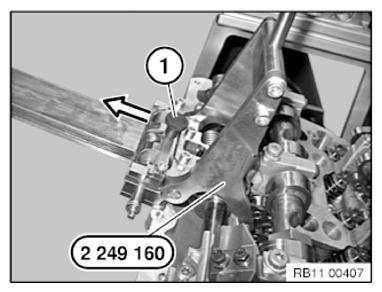

Adjust Intermediate Shaft Using Adjusting Screw (1).

Fig 1: Identifying Intermediate Shaft Adjusting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Turn Engine At Central Bolt As Needed for Removing The Intermediate Shaft.

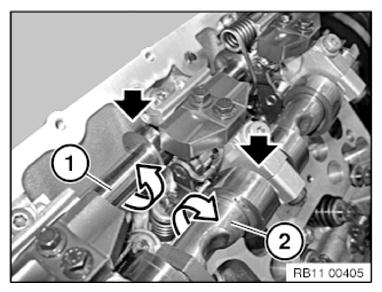

Position Intake Camshaft (2) of The Intermediate Lever To Be Mounted In A Horizontal Position (See Arrow In Illustration).

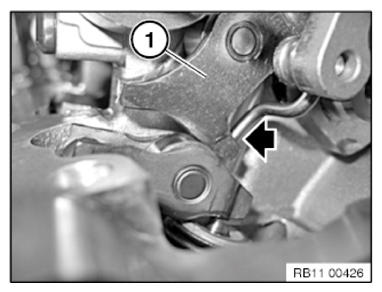

Set Intermediate Shaft (1) To Zero Lift (See Arrow In Illustration).

Fig 2: Positioning Intake Camshaft Horizontally and Setting Intermediate Shaft To Zero Lift

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Throttle Return Spring and Special Tool Do Not Need To Be Removed.

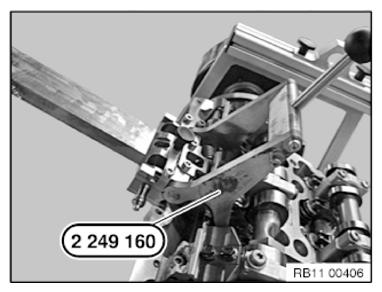

Fit Special Tool 2 249 160 On Cylinder Head.

Preload Throttle Return Spring with Special Tool 2 249 160 .

Fig 3: Fitting Special Tool (2 249 160) To Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

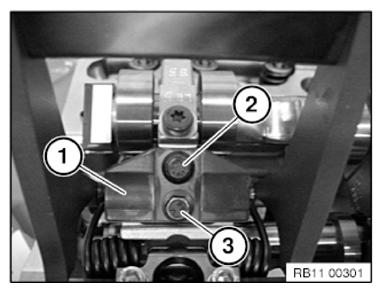

Loosen The Collar Bolt (2).

Release Retaining Screw (3).

Remove Gate (1).

Fig 4: Identifying Collar Bolt, Gate, and Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

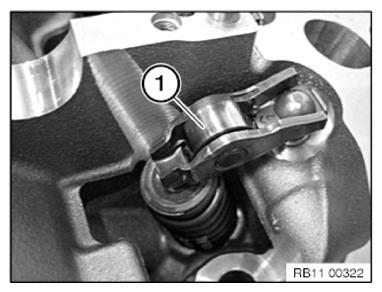

Remove Roller Cam Follower (1) Toward The Top Using A Magnet.

Fig 5: Identifying Roller Cam Follower

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

Make Sure Roller Cam Follower Is In Correct Installation Position.

Fig 6: Identifying Rocker Arms

Courtesy of BMW OF NORTH AMERICA, INC.

Position Gate (1) On Cylinder Head.

Insert Retaining Screw (3) and Loosen By 45°.

Insert Collar Bolt (2) and Loosen By 45°.

Fig 7: Identifying Collar Bolt, Gate, and Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Position Fixture (1) On Cylinder Head.

Insert Retaining Screw (3) and Loosen By 45°.

Loosen The Collar Bolt (2).

Fig 8: Identifying Collar Bolt, Gate, and Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Position Gate (1) On Cylinder Head.

Insert Retaining Screw (3) and Loosen By 45°.

Insert Collar Bolt (2) and Loosen By 45°.

Fig 9: Identifying Collar Bolt, Gate, and Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

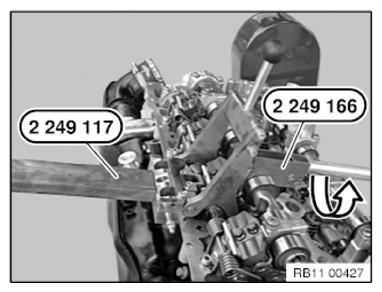

Using Special Tool 2 249 166 , Press Gate Upward In Direction of Arrow To The Cylinder Head.

Fig 10: Pressing Gate Using Special Tool (2 249 166) Toward Top At Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Attach Retaining Screw (3).

Tightening torque: 11 37 2AZ .

Attach Collar Bolt (2).

Tightening torque: 11 37 2AZ .

Fig 11: Identifying Collar Bolt, Gate, and Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Preload Special Tool 2 249 160 .

Pull Up Release Mechanism (1).

Loosen Lock In Direction of Arrow.

Remove Special Tool 2 249 160 .

Fig 12: Removing Special Tool (2 249 160) and Clamping In Vice

Courtesy of BMW OF NORTH AMERICA, INC.

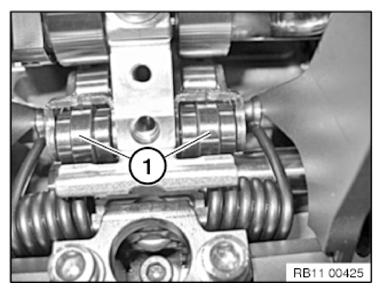

Make Sure Throttle Return Spring On Roller Cam Follower (1) Is In The Correct Installation Position.

Fig 13: Checking Installation Position of Return Spring On Roller Cam Follower

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

Assemble Engine.
