11 23 010 Removing and Installing/Replacing Vibration Damper (N55)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

Necessary Preliminary Tasks:

Remove UNDERBODY PROTECTION .
Remove DRIVE BELT .

NOTE: Gearbox Removed:

Block Crankshaft with Special Tool 11 9 260 .

NOTE: Picture of Flywheel Removal.

Fig 1: Blocking Crankshaft Using Special Tool 11 9 260 (Transmission Removed)

G09873992

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Gearbox Installed with Manual Gearbox:

Block Crankshaft with Special Tool 11 8 180 .

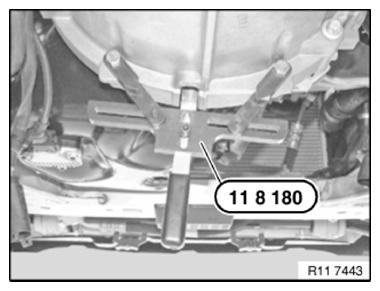

Fig 2: Blocking Crankshaft Using Special Tool 11 8 180 (Manual Transmission)

G09873993

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Gearbox Installed (Automatic Transmission):

Block Crankshaft with Special Tool 11 8 660 .

Fig 3: Blocking Crankshaft Using Special Tool 11 8 660 (Transmission Installed)

G09873994

Courtesy of BMW OF NORTH AMERICA, INC.

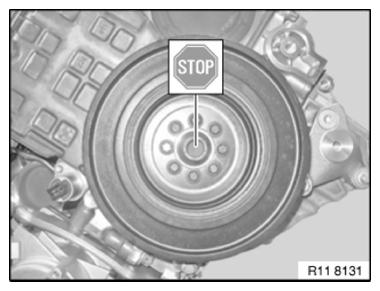

IMPORTANT: Do Not Release Central Bolt.
If The Central Bolt Is Accidentally Loosened, The Timing Must Be Readjusted.

Fig 4: Identifying Central Bolt

G09873995

Courtesy of BMW OF NORTH AMERICA, INC.

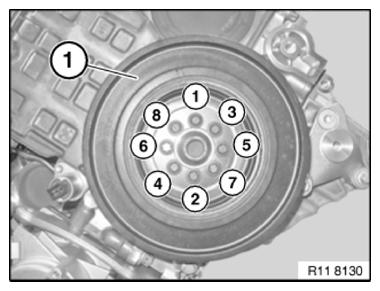

Release Screws (1 To 8).

Remove Vibration Damper (1).

Screws On Vibration Damper

Tightening torque 11 23 1AZ .

Fig 5: Vibration Damper Bolts Tightening/Loosening Sequence

G09873996

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble Engine.
