11 31 025 Removing and Installing/Replacing Intake Camshaft (N55)

Special Tools Required:

• 11 4 481 .

Necessary Preliminary Tasks:

• Remove CYLINDER HEAD COVER .
• Remove INTAKE ADJUSTER .
• Remove INTERMEDIATE LEVER .
• Adjust VALVE TIMING .

The Front Bearing Cap Is A Thrust Bearing and Does Not Have An Identification.

Release Screws On Thrust Bearing Cover.

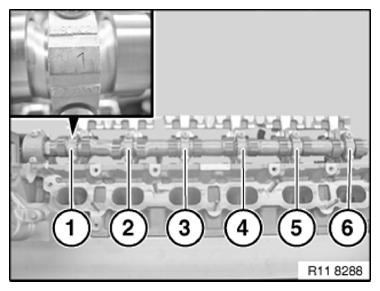

Release Screws On All Bearing Caps 1 To 6.

Set All Bearing Caps Down In Special Tool 11 4 481 In A Neat and Orderly Fashion.

Fig 1: Identifying Bearing Cap Number Markings

Courtesy of BMW OF NORTH AMERICA, INC.

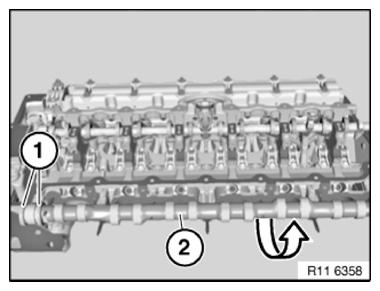

Remove Intake Camshaft (2) Towards Top.

Fig 2: Removing Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

Clean All Bearing Positions and Lubricate with Oil.

Check Plain Rectangular Compression Rings (1) for Damage.

Metal Plain Rectangular Compression Ring:

Only Replace Plain Rectangular Compression Rings (1) When They Are Broken.

The Plain Rectangular Compression Rings Have Catches At The Joint.

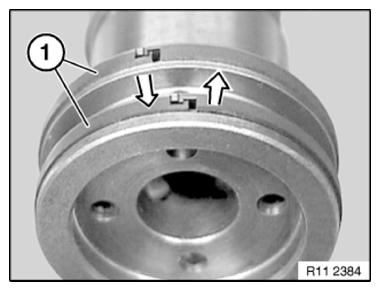

Press Plain Rectangular Compression Rings (1) Apart Upwards and Downwards and Removed Towards Front.

Make Sure Plain Rectangular Compression Rings (1) Can Move Freely.

Fig 3: Removing Plain Rectangular Compression Rings

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

When Intake Camshafts Are Inserted, No Joint Must Point To A Separating Joint.

Plastic Plain Rectangular Compression Ring

Installation Note:

The Plastic Plain Rectangular Compression Ring Is Maintenance Free and Does Not Have To Be Replaced.

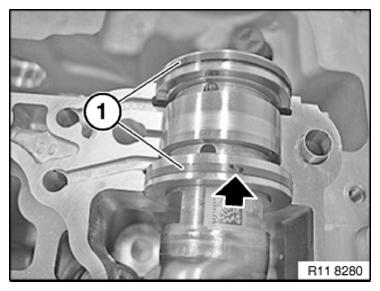

Insert Plastic Plain Rectangular Compression Ring (1) Into Groove of Intake Camshaft (2) (See Arrow In Illustration).

Lightly Oil Plastic Plain Rectangular Compression Ring (1) and Rotate In Direction of Arrow Until Plastic Plain Rectangular Compression Ring (1) Is Positioned On The Intake Camshaft.

Fig 4: Inserting Plastic Rectangular Compression Ring Into Exhaust Camshaft Groove and Rotating Into Position

Courtesy of BMW OF NORTH AMERICA, INC.

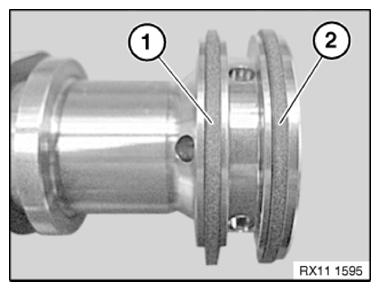

Check Plastic Plain Rectangular Compression Ring (1 and 2) for Freedom of Movement.

Fig 5: Identifying Plastic Plain Rectangular Compression Rings

Courtesy of BMW OF NORTH AMERICA, INC.

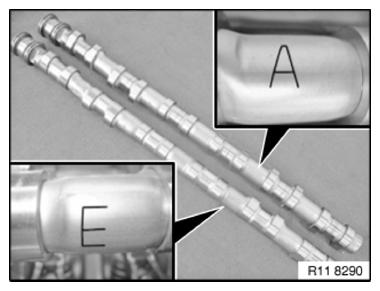

Fig 6: Identifying Intake (E) and Exhaust (A) Identification Marks On Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

Install Intake Camshaft So That The Latch Mechanism of The Plain Rectangular Compression Rings (1) Does Not Point To A Contact Point of The Bearing Cap Center Latch Mechanism of The Plain Rectangular Compression Rings with the Bearing Cap.

Fig 7: Identifying Plain Rectangular Compression Rings

Courtesy of BMW OF NORTH AMERICA, INC.

Insert Intake Camshaft So That Data Code (1) On Mounting Flats Points Upwards.

Fig 8: Locating Part Numbers On Intake and Exhaust Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

Position Intake Camshaft (1) So That Cams Point Upwards At An Angle and To The Left.

Fig 9: Positioning Cams On Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

The Front Bearing Cap Is A Thrust Bearing and Does Not Have An Identification.

Insert Screws On All Bearing Caps 1 To 6.

Insert Screws On Thrust Bearing Cover.

Tightening torque 11 31 3AZ .

Fig 10: Identifying Bearing Cap Number Markings

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble Engine.
