11 36 046 Removing and Installing or Replacing Intake and Exhaust Camshaft Adjusters (N55)

Special Tools Required:

• 00 9 120 .
• 00 9 250
• 11 4 280 .
• 11 4 290 .
• 11 9 340 .

Necessary Preliminary Tasks:

• Remove CYLINDER HEAD COVER .
• Check TIMING .

Release Central Bolts (1 and 2).

Fig 1: Identifying Central Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Release Chain Tensioner (1).

Tightening torque 11 31 7AZ .

Installation Note:

Replace Sealing Ring.

Fig 2: Identifying Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

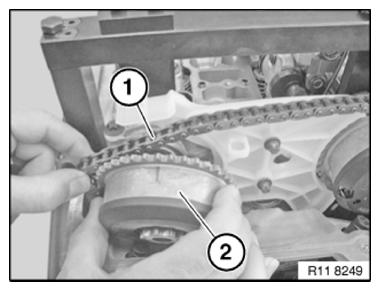

Slightly Lift Timing Chain (1) and Remove Exhaust Camshaft Adjuster (2) From Exhaust Camshaft.

Slightly Tilt Exhaust Camshaft Adjuster (2) and Remove Upward.

Fig 3: Identifying Timing Chain and Exhaust Camshaft Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

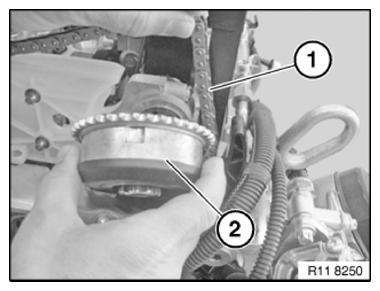

Slightly Lift Timing Chain (1) and Remove Intake Adjuster (2) From Intake Camshaft.

Slightly Tilt Intake Adjuster (2) and Remove Upward.

Fig 4: Identifying Timing Chain and Intake Camshaft Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

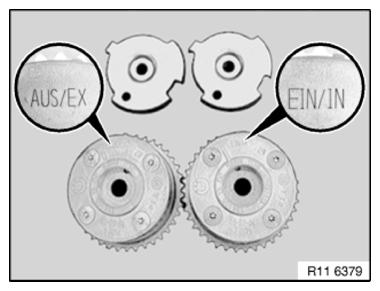

Intake and Exhaust Camshaft Adjusters Are Different.

VANOS Is Marked with AUS/Ex for The Exhaust Camshaft.

VANOS Is Marked with EIN/In for The Intake Camshaft.

Sensor Gears Can Be Fitted Alternatively.

Fig 5: Identifying VANOS Identification Markings for Intake Camshaft and Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

Replace Central Bolts.

Place Intake Adjuster Onto Intake Camshaft.

Place Exhaust Camshaft Adjuster Onto Exhaust Camshaft.

Installation Position of Intake and Exhaust Camshaft Adjusters Can Be Freely Selected.

Insert Central Bolts (1) Until Stop.

Release Central Bolts (1) Again By A 90° Turn.

Fig 6: Identifying Central Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

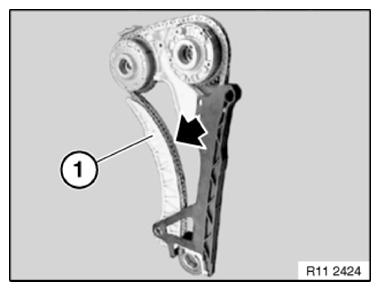

Press Tensioning Rail (1) By Hand Against Guide Rail and Make Sure Timing Chain Is Guided In Tensioning Rail (1).

Fig 7: Checking Timing Chain Fitment In Tensioning Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Turn Sensor Gears (2) In Direction of Arrow Until Retaining Pins (1) On Special Tool 11 4 290 Match Up.

11 4 290 Slide On Special Tool In Direction of Arrow.

Fig 8: Turning Sensor Gears Until Retaining Pins On Special Tool Match Up

Courtesy of BMW OF NORTH AMERICA, INC.

Special Tool 11 4 280 Must Be Mounted for Fastening Central Bolts

Use Bolts To Fasten Special Tool 11 4 290 .

11 9 340 Screw Special Tool Into Cylinder Head.

Fig 9: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Pretension Timing Chain with Special Tool 11 9 340 00 9 250 0, 6 Nm

Fig 10: Pretensioning Timing Chain Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Use Special Tool 00 9 120 To Tighten Central Bolts of Intake Adjuster.

Tightening torque 11 36 1AZ .

Fig 11: Tightening Central Bolts of Intake Adjuster Using Special Tool 00 9 120

Courtesy of BMW OF NORTH AMERICA, INC.

Use Special Tool 00 9 120 To Tighten Central Bolts of Exhaust Camshaft Adjuster.

Tightening torque 11 36 1AZ .

Fig 12: Tightening Central Bolts of Exhaust Camshaft Adjuster Using Special Tool 00 9 120

Courtesy of BMW OF NORTH AMERICA, INC.

Remove All Special Tools.

Rev Engine On The Central Bolt Twice In The Direction of Engine Rotation and Verify TIMING .

Assemble Engine.
