11 12 729 Checking Cylinder Head for Watertightness (N63)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

00 9 250
11 8 080 .
11 8 081 .
11 8 082 .
11 8 083 .

Necessary Preliminary Tasks:

Remove Left Cylinder Head.
Remove Right Cylinder Head.
Remove ALL VALVES .

NOTE: Set of Special Tools 11 8 080 Can Be Used for Cylinder Bank 1 To 4 and Cylinder Bank 5 To 8.

Position Special Tool 11 8 081 On Cylinder Head.

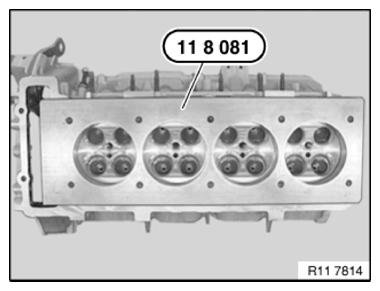

Fig 1: Positioning Special Tool 11 8 081 On Cylinder Head

G09873437

Courtesy of BMW OF NORTH AMERICA, INC.

Insert Special Tool 11 8 083 and Tighten In Sequence (1 To 10) In Several Steps.

Tightening torque: 25 Nm

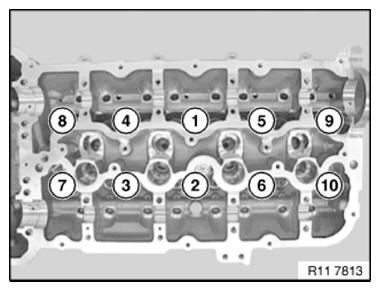

Fig 2: Cylinder Head Bolts Tightening/Loosening Sequence (N63)

G09873438

Courtesy of BMW OF NORTH AMERICA, INC.

Remove Vent Screw (1).

Tightening torque: 11 12 8 AZ .

Installation Note:

Replace Sealing Ring.

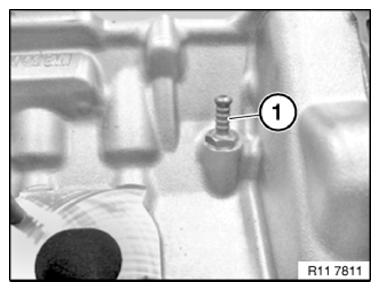

Fig 3: Identifying Vent Screw

G09873439

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Max: 0.8 Nm.

Screw In Special Tool 11 8 082 with Suitable Tool and Special Tool 00 9 250 To 0.8 Nm.

Connect Compressed Air Hose with Pressure Gauge.

Immerse Cylinder Head In A Water Bath. Inspection Pressure 4.0 Bar.

Check Cylinder Head for Escaping Air (Cracks).

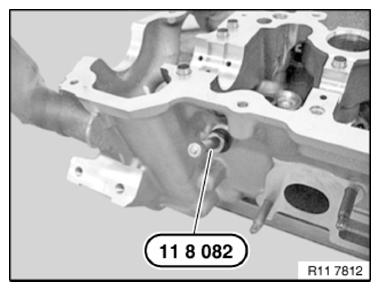

Fig 4: Installing Special Tool 11 8 082 Using Suitable Tool

G09873440

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If Necessary, Add Cleaning Agent To Water Bath.
Assemble Engine.
