11 34 552 Removing and Installing/Replacing All Valves (N63)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

Necessary Preliminary Tasks:

Remove Left Cylinder Head.
Remove Right Cylinder Head.
Remove Camshafts. See Procedures for:
- LEFT EXHAUST CAM ,
- LEFT INLET CAM ,
- RIGHT INLET CAM , and
- RIGHT EXHAUST CAM .

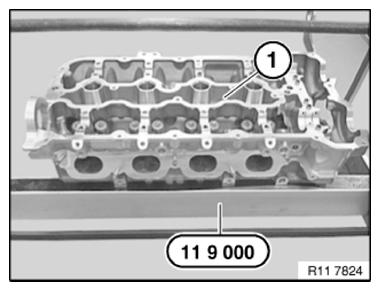

Mount Cylinder Head (1) On Special Tool 11 9 000.

Fig 1: Mounting Cylinder Head On Special Tool 11 9 000

Courtesy of BMW OF NORTH AMERICA, INC.

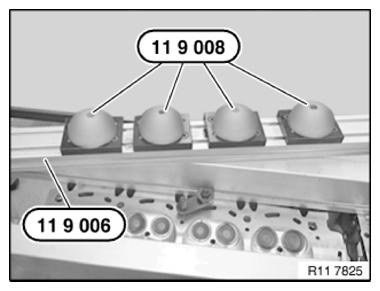

Prepare Special Tool 11 9 008 On Special Tool 11 9 006 .

Fig 2: Preparing Special Tool 11 9 008 On Special Tool 11 9 006

Courtesy of BMW OF NORTH AMERICA, INC.

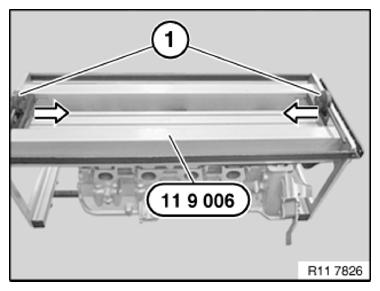

Position Special Tool 11 9 006 with Silicone Cushion On Cylinder Head.

Slide Locks (1) In Direction of Arrow and Pretension with Eccentric Shaft.

Fig 3: Positioning Special Tool 11 9 006 with Silicone Cushion On Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

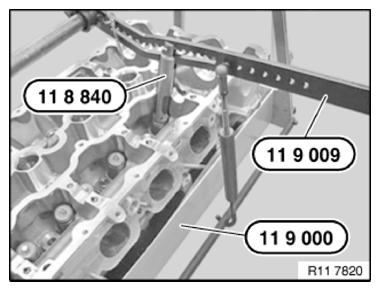

Press Down Valve Spring with Special Tool 11 8 840 .

Fig 4: Pressing Down Valve Spring Using Special Tool 11 8 840

Courtesy of BMW OF NORTH AMERICA, INC.

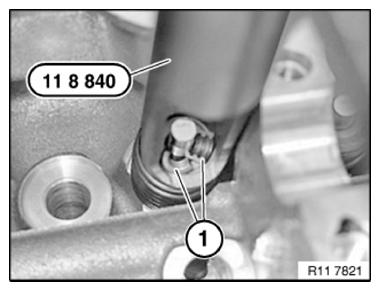

Remove Valve Cotters (1) with A Magnet.

Place Valve Springs and Valve Keys On Special Tool 11 4 480 In An Orderly Manner.

Fig 5: Place Valve Springs and Valve Keys On Special Tool 11 4 480

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Incorrect Assembly Possible.
Incorrect Assembly Will Result In Valve Spring Breakage.
Color Marking (1) Is Normally On Lower End of Valve Spring.
Only The Diameter Is Decisive for The Correct Installation of The Valve Springs.
Install Valve Spring So That Larger Diameter Points To Spring Plate At Bottom.

Fig 6: Locating Color Marking On Valve Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Arrangement:

Valve
Valve Stem Seal with Spring Cup, Bottom
Valve Spring
Top Spring Cup
Valve Keys

Fig 7: Exploded View of Valve
Courtesy of BMW OF NORTH AMERICA, INC.

Release Special Tool 11 9 006 From Cylinder Head.

Remove All Valves and Place On Special Tool 11 4 480 In An Orderly Manner.

Fig 8: Preparing Special Tool 11 9 008 On Special Tool 11 9 006

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble Engine.
