11 12 729 Checking Cylinder Head for Water Leaks (N55)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

IMPORTANT: Pressure-Test Cylinder Head To Max. 3 Bar.
Heat Cylinder Head To 60 °.
Check for Bubble Formation In A Water Bath.

Necessary Preliminary Tasks:

Remove CYLINDER HEAD .
Disassemble Cylinder Head. See INTAKE CAMSHAFT , EXHAUST CAMSHAFT , and VALVES .

Fit Special Tool 11 7 190 .

Installation Note:

Secure Special Tool To Max. 15 Nm.

Fig 1: Fitting Special Tool 11 7 190

Courtesy of BMW OF NORTH AMERICA, INC.

Fit Special Tool 11 4 342 with Screws (1). Screw In Knurled Screw In Direction of Arrow.

Sealing Flange Must Rest Flat.

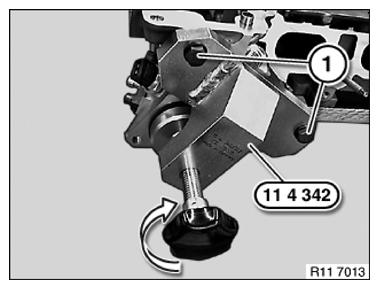

Fig 2: Fitting Special Tool 11 4 342 with Screws and Turning Knurled Knob

Courtesy of BMW OF NORTH AMERICA, INC.

Secure Special Tool 11 4 344 with Bolts (1).

NOTE: Compressed Air At Valve Max. 3 Bar .

Heat Cylinder Head To 60 °.

Check for Bubble Formation In A Water Bath.

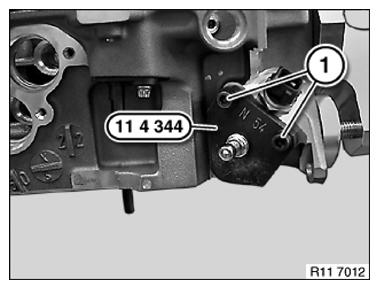

Fig 3: Securing Special Tool 11 4 344 with Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble Engine.
