11 12 719 Resurfacing Cylinder Head Lower Face (N55)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove CYLINDER HEAD .
Remove EXHAUST CAMSHAFT .
Remove INTERMEDIATE LEVER On Intake Side.

Check Evenness of Cylinder Head Lower Faces with A Standard Straightedge (1).

NOTE: Max. Deviation From Flatness (Longitudinal) 0.10 Mm

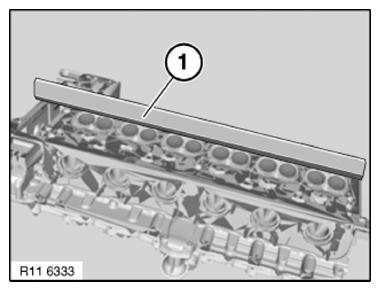

Fig 1: Checking Evenness of Cylinder Head Lower Faces Using Standard Straightedge

Courtesy of BMW OF NORTH AMERICA, INC.

Check Evenness of Cylinder Head Lower Faces with A Standard Straightedge (1).

NOTE: Max. Deviation From Flatness (Transverse) 0.05 Mm

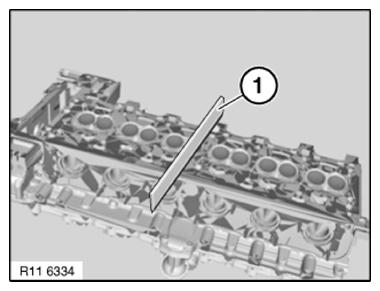

Fig 2: Checking Transverse Evenness

Courtesy of BMW OF NORTH AMERICA, INC.

Check Cylinder Head for WATERTIGHTNESS .

Assemble Engine.
