11 12 112 Replacing Both Cylinder Head Gaskets (N63O1)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove Left CYLINDER HEAD .
Remove Right CYLINDER HEAD .

Installation Note:

Check Spacer Bushes (1) for Damage and Replace If Applicable.

The Cylinder Head Gasket (2) for Cylinders 1-4 and Cylinders 5-8 Are Identical.

Cylinder Head Gasket (2) Must Depending On Its Styling Be Correctly Positioned On The Timing Chain Case.

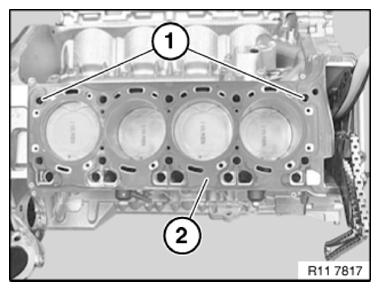

Fig 1: Identifying Fitting Sleeves and Cylinder Head Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Repair Gasket (+Rep) Is 0.3 Mm Thicker.

Check Cylinder Head for SURFACE EVENNESS .

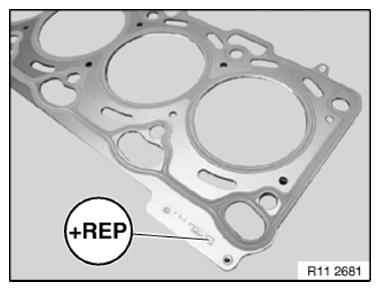

Fig 2: Identifying Thicker Cylinder Head Gasket (+Rep)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble Engine.
