11 12 719 Grinding Cylinder Head Lower Face (N63O1)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove Cylinder Head. See LEFT CYLINDER HEAD or RIGHT CYLINDER HEAD .

Cylinder Head Disassembled

Check Evenness of Cylinder Head Lower Face with A Standard Straightedge (1).

NOTE: Maximum Deviation From Flatness: Longitudinal 0.10 Mm.

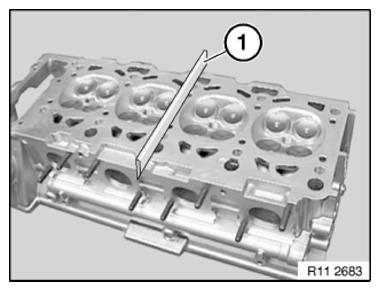

Fig 1: Checking Evenness of Cylinder Head Lower Face Using Standard Straightedge

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Maximum Deviation From Flatness: Transversal 0.05 Mm.

Machining Limit: Refer To TECHNICAL DATA - CYLINDER HEAD WITH LID .

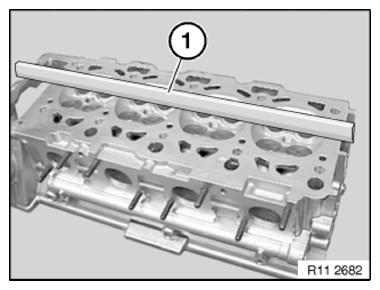

Fig 2: Checking Transversal Flatness
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: A Cylinder Head Gasket (+Rep) 0.3 Mm Thicker Than Usual Can Be Obtained for Machined (Resurfaced) Cylinder Heads.

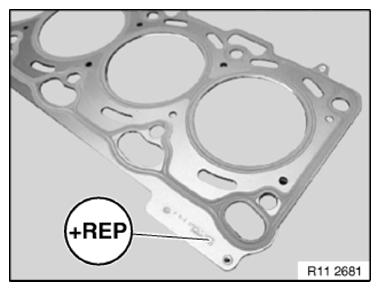

Fig 3: Identifying Thicker Cylinder Head Gasket (+Rep)

Courtesy of BMW OF NORTH AMERICA, INC.
