11 12 040 Removing and Installing All Ignition Coils and Injector Wells (N55)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove CYLINDER HEAD COVER .
- REMOVE All Injectors.

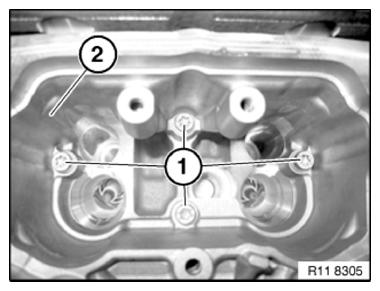

Release Screws (1).
Tightening torque: 11 12 8AZ .

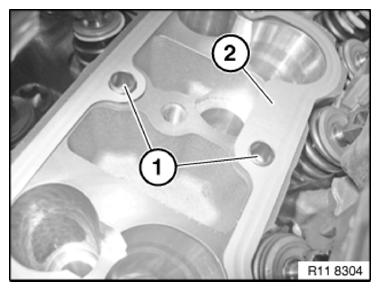

Check Fitting Bushes (1) for Damage.
Installation Note:
Replace Gasket (2).
Assemble Engine.
