11 15 140 Replace Oil Separator (N63)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove Cylinder Head Cover. See LEFT CYLINDER HEAD COVER or RIGHT CYLINDER HEAD COVER .

Removal

Release Screws In The Sequence 3 - 1 .

Remove Oil Separator.

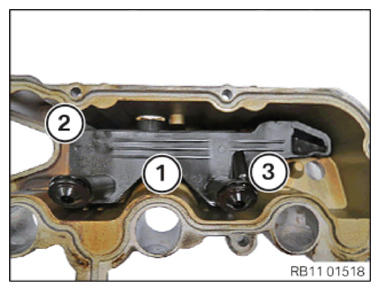

Fig 1: Oil Separator Bolts Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

Illustration: Cylinders 5 To 8.

Installation

IMPORTANT: Risk of Damage!
All Engine Oil and Contamination Must Be Removed From All Threaded Holes.
Compliance with Torque Specifications for Screw Connections Is Mandatory!

Fig 2: Oil Separator Bolts Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

Install The Oil Separator with Duct.

Parts: Replace Screws.

Tighten Screws In The Sequence 1 - 3 .

Tightening torque 11 12 11AZ .

Required Follow-Up Work

Install Cylinder Head Cover
