11 37 020 Removing and installing/replacing servomotor for eccentric shaft (N20)

Special tools required:

• 11 7 170 .

Necessary preliminary work:

• Remove CYLINDER HEAD COVER .
• Remove IGNITION COIL AND INJECTOR SHAFTS .

The eccentric shaft on the mounting flats (1) must only be turned with an open-end spanner (2) for support.

The eccentric shaft has mounting flats on both sides;  if the engine is installed, the front mounting flat must be used.

Heed the following work instructions.

After the engine stops, the eccentric shaft is in the maximum stroke position.

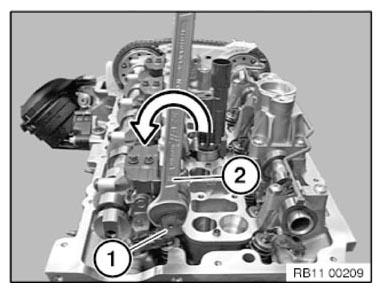

Fig 1: Turning Eccentric Shaft On Mounting Flats

Courtesy of BMW OF NORTH AMERICA, INC.

If the actuator drive is defective, the eccentric shaft is located in an undetermined position.

Release screw (1) at oil spray nozzle (2).

Tightening torque: 11 37 4AZ .

Unclip oil spray nozzle (2) from the bracket on the actuator drive (3) in direction of arrow.

Fig 2: Identifying Oil Spray Nozzle, Bolt, And Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Turn 4-mm hexagon socket wrench (2) clockwise (maximum stroke).

Secure eccentric shaft (1) with open-end spanner (3) for support.

Fix eccentric shaft with an open-end spanner (3) (kickback danger)

Fig 3: Securing Eccentric Shaft And Adjusting Via Servomotor Using 4mm Hexagon Socket Wrench

Courtesy of BMW OF NORTH AMERICA, INC.

Position eccentric shaft in the middle between maximum stroke and minimum stroke.

Secure eccentric shaft (1) with special tool 11 7 170 .

The open-end spanner can now be removed.

Fig 4: Identifying Worm Gear

Courtesy of BMW OF NORTH AMERICA, INC.

Remove minimum stroke stop (1).

Stop (2) of maximum stroke must remain in place for support of the intermediate shaft.

Tightening torque: 11 37 5AZ .

Fig 5: Identifying Minimum Stroke Stop And Maximum Stroke Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Slowly adjust eccentric shaft to minimum stroke via servomotor using 4-mm hexagon socket wrench (2) and open-end spanner (3).

Release gearing of the eccentric shaft from worm drive.

Fig 6: Securing Eccentric Shaft And Adjusting Via Servomotor Using 4mm Hexagon Socket Wrench

Courtesy of BMW OF NORTH AMERICA, INC.

Turn eccentric shaft (2) approximately 90° further with an open-end spanner (1).

Secure eccentric shaft (2) against kickback with the assistance of a second person.

Graphic N55.

Fig 7: Turning Eccentric Shaft Using Open-End Spanner

Courtesy of BMW OF NORTH AMERICA, INC.

Position stop (1) of eccentric shaft at stop of maximum stroke.

Fig 8: Positioning Stop Of Eccentric Shaft At Stop Of Maximum Stroke

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in stop (1) for minimum stroke.

Tightening torque: 11 37 5AZ .

Installation note:

The eccentric shaft is now secured and can no longer kick back.

Fig 9: Identifying Stop For Minimum Stroke

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

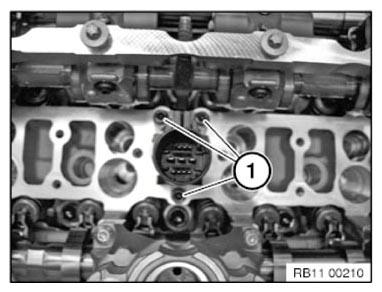

Fig 10: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

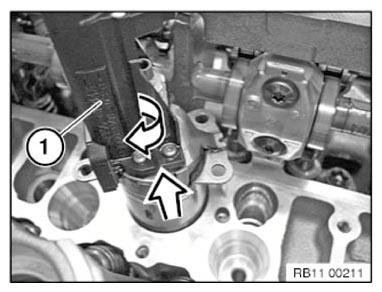

Turn servomotor (1) in direction of arrow and remove upwards.

Installation note:

Clean blind holes with compressed air.

The gearing of the worm gear and the eccentric shaft must be greased with LONGTIME PD 1 (4.1) .

Fig 11: Turning And Removing Servomotor

Courtesy of BMW OF NORTH AMERICA, INC.

Insert bolts (1).

Tightening torque: 11 37 3AZ .

Installation note:

Eccentric shaft and worm drive must now be joined.

Fig 12: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release stop (1) of minimum stroke of eccentric shaft.

Tightening torque: 11 37 5AZ .

Fig 13: Identifying Stop For Minimum Stroke

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Carefully mate eccentric shaft gear in the worm shaft of the servomotor by turning the actuator drive.

Fix eccentric shaft with an open-end spanner (3) for support and secure (kickback danger).

Fig 14: Securing Eccentric Shaft And Adjusting Via Servomotor Using 4mm Hexagon Socket Wrench

Courtesy of BMW OF NORTH AMERICA, INC.

Centrally clamp the eccentric shaft with a 4-mm hexagon socket wrench (2) at the servomotor.

Secure eccentric shaft (1) with special tool 11 7 170 .

Fig 15: Identifying Worm Gear

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in stop (1) for minimum stroke.

Tightening torque: 11 37 5AZ .

Fig 16: Identifying Minimum Stroke Stop And Maximum Stroke Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Slowly adjust eccentric shaft (1) to maximum stroke via servomotor using 4- mm hexagon socket wrench (2) and open-end spanner (3).

Fig 17: Securing Eccentric Shaft And Adjusting Via Servomotor Using 4mm Hexagon Socket Wrench

Courtesy of BMW OF NORTH AMERICA, INC.

Retract oil spray nozzle (2) on actuator drive (3).

Engage bolt (1) and release back to 90°.

For exact positioning of the oil spray nozzle (2) audibly clip it in at the top.

Secure oil spray nozzle (2) with screw (1).

Tightening torque: 11 37 4AZ .

Fig 18: Identifying Oil Spray Nozzle, Bolt, And Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

Assemble engine.

Check function of DME.

• Service function.
• Drive.
• Digital Motor Electronics
• Valvetronic run-in procedure.
