11 23 010 Removing and installing/replacing vibration damper (N55 Hybrid)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

2 318 439 .
11 0 390 .

WARNING:

High-voltage hazard!

The following must be strictly observed prior to starting work :

Observe SAFETY INFORMATION for handling hybrid cars.

Necessary preliminary work:

Remove FAN COWL .
Remove STARTER MOTOR .

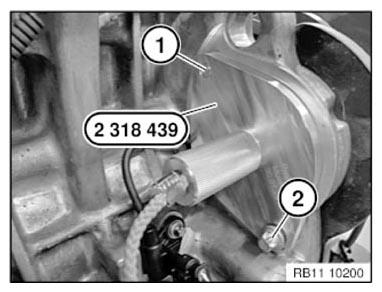

NOTE: Insert tool 2 318 439 in starter opening.
Make sure locking pin (1) is correctly seated.

Fig 1: Inserting Special Tool (2 318 439) In Starter Opening

G09920489

Courtesy of BMW OF NORTH AMERICA, INC.

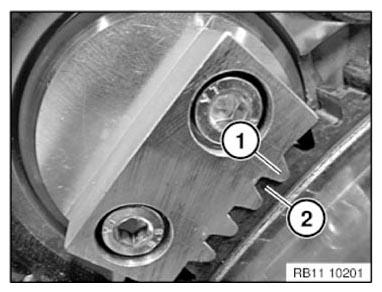

Gearing (1) of tool 2 318 439 must engage in flywheel gearing (2).

If this is not possible, slows turn the crankshaft in the direction in which the engine runs until the gearing engages.

Fig 2: Identifying Flywheel Gearing And Gearing Of Special Tool

G09920490

Courtesy of BMW OF NORTH AMERICA, INC.

Tool 2 318 439 must be completely in contact with the crankshaft housing.

Tighten screw (2).

Fig 3: Inserting Special Tool (2 318 439) In Starter Opening

G09920491

Courtesy of BMW OF NORTH AMERICA, INC.

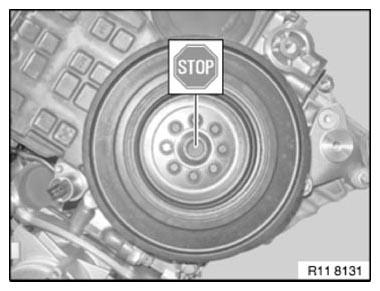

IMPORTANT: Do not release central bolt.

If the central bolt is accidentally loosened, the timing must be readjusted.

Fig 4: Identifying Central Bolt

G09920492

Courtesy of BMW OF NORTH AMERICA, INC.

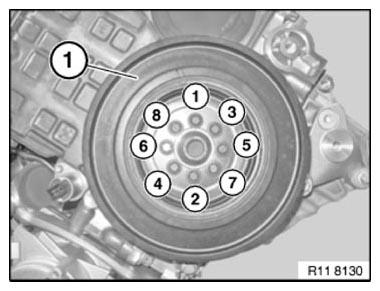

Slightly release screws (1 to 8) (do not screw out).

Fig 5: Vibration Damper Bolts Tightening/Loosening Sequence (N55 Hybrid)

G09920493

Courtesy of BMW OF NORTH AMERICA, INC.

Remove drive belt .

NOTE: Mark the direction of travel of the drive belt if it is to be reused.

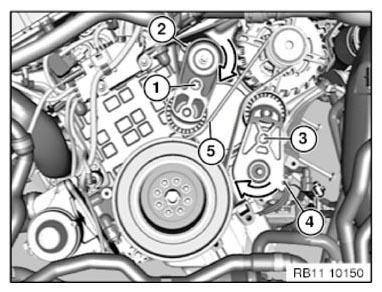

Turn belt tensioner (1) in direction of arrow until bore hole (2) is aligned with belt tensioner and crankcase.

Hold belt tensioner (1) under tension.

Secure with special tool 11 0 390 .

Turn belt tensioner (3) in direction of arrow until bore hole (4) is aligned with belt tensioner and crankcase.

Fig 6: Identifying Belt Tensioners And Bore Holes

G09920494

Courtesy of BMW OF NORTH AMERICA, INC.

Hold belt tensioner (3) under tension.

Secure with special tool 11 0 390 .

Remove drive belt (5).

Screw out screws (1 to 8).

Remove vibration damper (1).

Installation note:

Install vibration damper.

Join screws on vibration damper with 5 Nm.

Install drive belt.

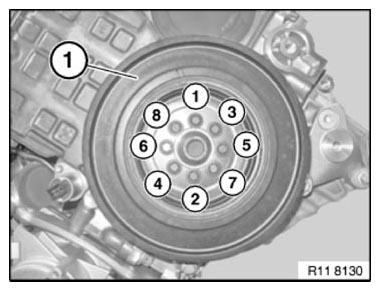

Tighten screws on vibration damper

Tightening torque 11 23 1AZ .

Fig 7: Vibration Damper Bolts Tightening/Loosening Sequence (N55 Hybrid)

G09920495

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
