11 23 010 Removing and installing/replacing vibration damper (N52)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove FAN COWL .
Remove DRIVE BELT .

Release screws (1).

Tightening torque 11 23 1AZ .

Remove vibration damper (2).

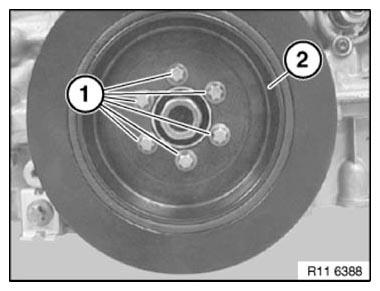

Fig 1: Identifying Vibration Damper Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
