17 11 035 Removing And Installing/Replacing Fan Cowl With Electric Fan (N52T)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Read out fault memory of DME control unit.
Switch off ignition.
Remove CROSS CONNECTION .

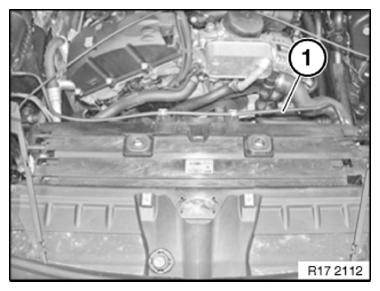

Release coolant hose (1) from fan cowl.

Fig 1: Coolant Hose From Fan Cowl

G09918243

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: 17 10 3AZ .

Pull off transmission oil cooler (2) in upward direction from fan cowl.

Fig 2: Transmission Oil Cooler And Screw

G09918244

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect connector (1) on fan cowl on right.

Fig 3: Connector On Fan Cowl

G09876459

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip fan cowl (1) at retainers (2) on left and right, feed out in upward direction and remove.

Fig 4: Unclipping Fan Cowl

G06889285

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert retaining tab (1) at bottom on module carrier.

Fig 5: Retaining Tab On Module Carrier

G04794056

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault message.
Reassemble the vehicle.
Delete fault memory.
