11 13 000 Removing and installing, sealing or replacing oil sump (N57 Diesel)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 0 200 .
00 0 201 .
00 0 202 .
00 0 204 .
00 0 208 .
11 0 000 .
11 8 780 .
(11 4 472)
(11 4 471)

Necessary preliminary tasks:

Remove STARTER MOTOR .
Drain ENGINE OIL .
Remove oil dipstick GUIDE TUBE .
Remove front oil sump ACOUSTIC COVER .
Remove FRONT AXLE DIFFERENTIAL (AWD only).
Remove BEARING SUPPORT (AWD only).

NOTE: Front axle alignment is not required.

IMPORTANT: Engines with surface sealant:
Application time of sealing bead max. 12 minutes.

Illustration: Automatic transmission

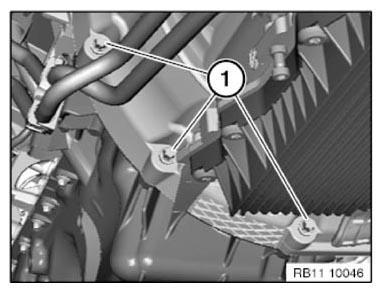

Release screws (1) from transmission.

Automatic transmission: Tightening torque 24 00 1AZ .

Manual gearbox: Tightening torque: 23 00 1AZ .

Fig 1: Identifying Transmission Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Illustration: 4WD

Installation note:

Replace gasket.

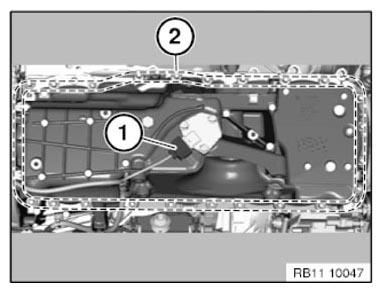

Unplug connector (1) from oil level switch and unclip cable in area of oil sump.

Modify oil level sensor if replacing oil sump.

Release oil sump bolts along dashed line (2).

Tightening torque 11 13 2AZ .

Detach oil sump downward.

Fig 2: Identifying Connector And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tighten down all screws diagonally and evenly.

GraphicsN47T

Only on vehicles with gasket

Remove gasket (1).

Remove gasket debris from sealing face and clean sealing face.

Fig 3: Identifying Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Use LIQUID SEALANT 2.1 Drei Bond.

Apply Drei Bond liquid sealant lightly and evenly in the area of the arrows on the differential cover to the engine block.

IMPORTANT: Oil sump gasket must not be lubricated.

Install oil sump with a new gasket.

Fig 4: Identifying Sealant Application Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Special tool 11 8 780 is only necessary if the engine or the transmission is removed.

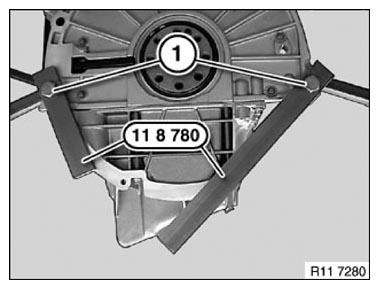

Position special tool 11 8 780 with transmission bolts (1) so that engine oil sump is exactly flush with engine block.

Attaching the oil sump.

Fig 5: Positioning Special Tool (11 8 780)

Courtesy of BMW OF NORTH AMERICA, INC.

Engines with liquid seal:

IMPORTANT: The oil sump can only be loosened in the areas (1) where an aperture is present in the oil sump.

Fig 6: Locating Aperture In Oil Sump

Courtesy of BMW OF NORTH AMERICA, INC.

Use a suitable crow bar (1) at the appropriate point to release the oil sump in direction of arrow.

Fig 7: Releasing Oil Sump

Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing surface (1) with special tool (11 4 472).

Installation note:

Sealing surfaces must be free of oil, grease and cleaning agents.

Fig 8: Cleaning Sealing Surface Using Special Tool (11 4 472)

Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing surface (1) with special tool (11 4 471).

Installation note:

Sealing surfaces must be free of oil, grease and cleaning agents.

Fig 9: Cleaning Sealing Surface Using Special Tool (11 4 471)

Courtesy of BMW OF NORTH AMERICA, INC.

Apply sealing compound:

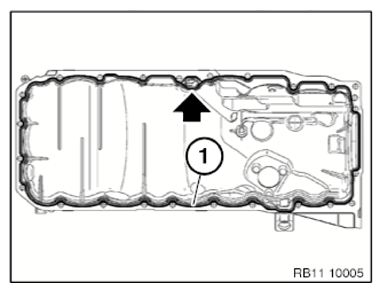

Apply the SEALING COMPOUND in area (1).

Make sure that the sealing bead runs along the inner edge.

The oil return channel must be completely surrounded (see arrow).

Installation note:

The oil sump must be installed approximately 10 minutes after application of the sealing compound.

Sealant height approximately 2 to 2.5 mm.

Fig 10: Identifying Application Area For Sealing Compound

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Special tool 11 8 780 is only necessary if the engine or the transmission is removed.

Position special tool 11 8 780 with transmission bolts (1) so that engine oil sump is exactly flush with engine block.

Attaching the oil sump.

Fig 11: Positioning Special Tool (11 8 780)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
