12 41 020 Removing and installing/replacing starter (N57 D30 O/T 1)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Switch off ignition.
Disconnect BATTERY NEGATIVE LEAD .
Remove bottom ACOUSTIC COVER .
Only F12 and all-wheel drive vehicles:
Remove STIFFENING PLATE .

Release nut (1) and remove cable.

Tightening torque 12 52 1AZ .

Release nut (2) and remove the positive battery cable.

Tightening torque 12 52 3AZ .

Release cable at clamp (3) from starter motor.

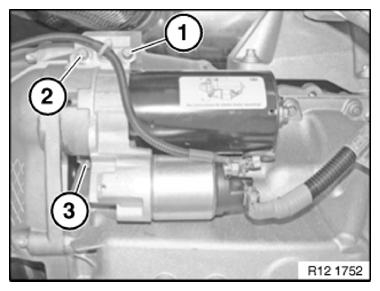

Fig 1: Identifying Cable Clamp And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1), (2) and (3).

Remove starter motor.

Installation note:

Observe screwing sequence .

Position and secure starter motor. Tighten down screws (1) and (2). Tighten down support screw (3).

Tightening torque 12 41 1AZ .

Fig 2: Identifying Starter Motor Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check starter pinion and ring gear for damage.

If necessary, replace starter motor.

Only during starter replacement and on vehicles with MSA (automatic engine start-stop function):

Use BMW diagnosis system to reset the starter counter.
