11 13 000 Removing and installing, sealing or replacing oil sump (N55 Hybrid)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 8 780 .

WARNING:

High-voltage hazard!

The following must be strictly observed prior to starting work :

Observe SAFETY INFORMATION for handling hybrid cars.

IMPORTANT: Aluminum screws/bolts are permitted with and without color coding (blue).
Aluminum screws/bolts must be replaced each time they are released .
For reliable identification:
Aluminum screws/bolts are not magnetic .
Joining torque and angle of rotation must be observed without fail (risk of damage) .

Necessary preliminary tasks:

Lower FRONT AXLE .
Drain ENGINE OIL .

Release screws (1).

Remove LEFT ENGINE SUPPORT ARM .

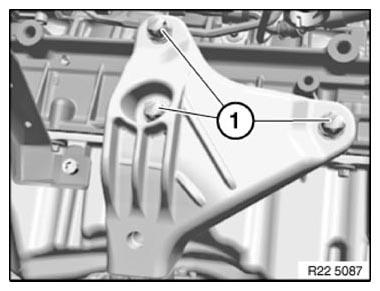

Fig 1: Identifying Screws Of Engine Support Arm

G09919549

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Release screw (2).

Remove holder (3) for deflecting element.

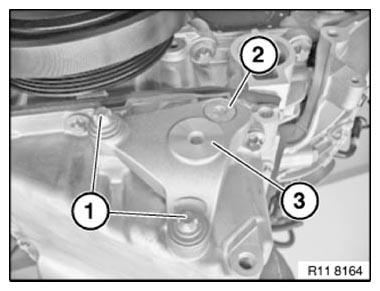

Fig 2: Identifying Holder And Screws

G09919550

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip electrical lines (2) of monitoring sensors from holder (3).

Disconnect plug connections (1) of monitoring sensors and lay to one side.

Release bolts (5) on gearbox.

Tightening torque 11 13 7AZ .

Lay holder (3) to one side.

Disconnect plug connection (4) on oil level sensor.

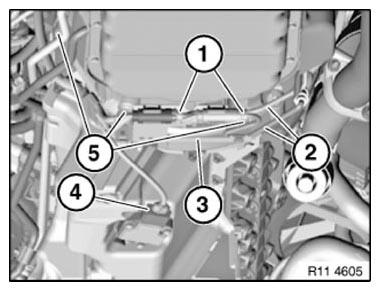

Fig 3: Identifying Plug Connections, Electrical Lines, Bolts, And Holder

G09919551

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts along line (1).

If necessary, remove oil level sensor.

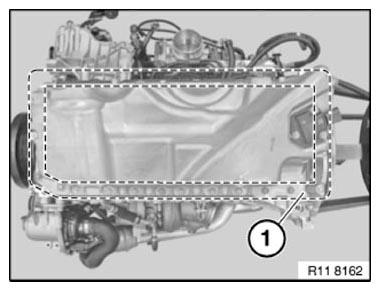

Fig 4: Locating Bolts

G09919552

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Screw (1) M8x92 mm.

Screws (2) M8x112 mm

Screws (3) M8x92 mm

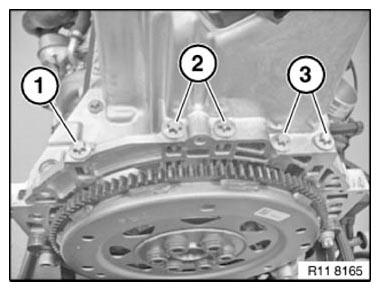

Fig 5: Identifying Screws

G09919553

Courtesy of BMW OF NORTH AMERICA, INC.

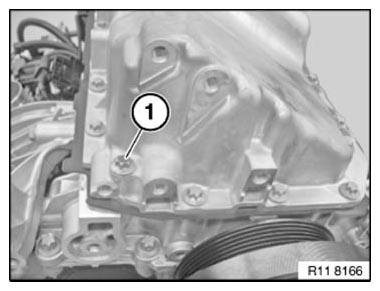

Installation note:

Screw (1) M8x50 mm.

Fig 6: Identifying Screw

G09919554

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replacing all O-rings and seals (1) .

Aluminum screws (2) M8x92 mm and M8x112 mm.

Tightening torque 11 13 3 AZ .

Aluminum screw (3) M8x50 mm.

Tightening torque 11 13 4AZ .

Aluminum screws (4) M8x26 mm.

Tightening torque 11 13 2AZ .

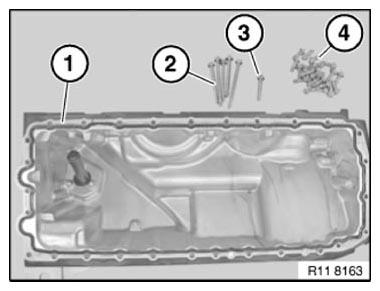

Fig 7: Identifying Gasket And Screws

G09919555

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Special tool 11 8 780 is only required if gear is not installed as mechanical stop.

Secure special tool 11 8 780 with two bolts on crankcase.

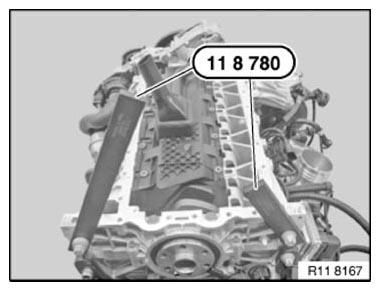

Fig 8: Securing Special Tool (11 8 780) On Crankcase

G09919556

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Engine removed:

Position oil sump (1) with no gaps until it contacts special tool 11 8 780 .

Installation note:

Engine installed:

Position oil sump (1) with no gaps until it contacts gearbox housing.

Bolt on oil sump (1).

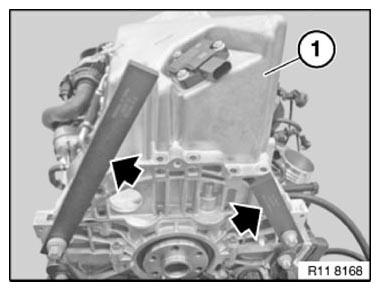

Fig 9: Positioning Oil Sump

G09919557

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Add ENGINE OIL .
