11 14 110 Removing and installing lower timing case cover (N63 O1)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 470 .

Necessary preliminary tasks:

Fully remove FRONT AXLE together with engine.
Remove engine from front axle. See REMOVING/INSTALLING ENGINE ON FRONT AXLE or REMOVING/INSTALLING ENGINE ON FRONT AXLE (AWD) .
Mount engine on ASSEMBLY STAND .
Remove both cylinder heads. See LEFT CYLINDER HEAD and RIGHT CYLINDER HEAD .
Remove alternator BELT TENSIONER .
Remove OIL PUMP .
Remove UPPER OIL SUMP SECTION .
Remove VIBRATION DAMPER .
Remove COOLANT PUMP .
Remove ALTERNATOR .
Remove A/C COMPRESSOR .

Release screws along lines (1).

Remove timing case cover (2) towards front.

Clean sealing surfaces with special tool 11 4 470 .

Graphic N63.

Fig 1: Identifying Timing Case Cover And Screws

G09919606

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check jump guard for damage.

Release screw (1).

Tightening torque 11 14 1AZ .

Remove jump guard (2).

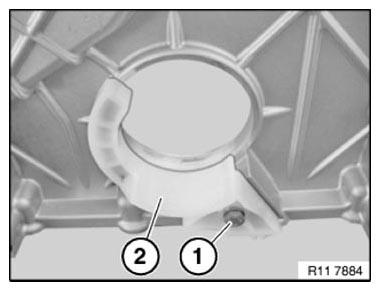

Fig 2: Identifying Jump Guard And Screw

G09919607

Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing surfaces with special tool 11 4 470 .

Installation note:

Preposition all bolts in timing case cover.

Replace beaded metal gaskets (1, 2 and 3).

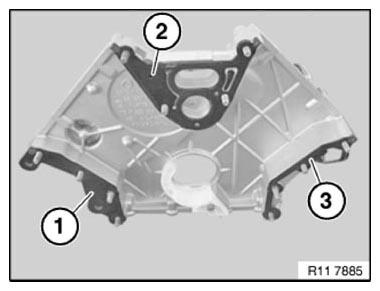

Fig 3: Identifying Beaded Metal Gaskets

G09919608

Courtesy of BMW OF NORTH AMERICA, INC.

Fit timing case cover (2).

Initially tighten all bolts to approx. 5 Nm.

Fully tighten all bolts in alternate sequence.

Tightening torque 11 14 2AZ .

Installation note:

Wait for PU material to emerge at sealing joints.

Do not wash off PU material overhang

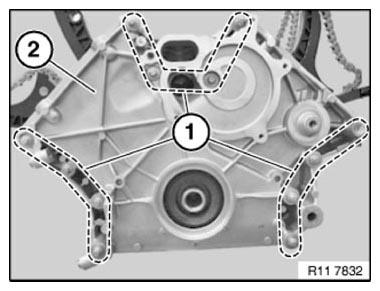

Fig 4: Identifying Timing Case Cover And Screws

G09919609

Courtesy of BMW OF NORTH AMERICA, INC.

Replace RADIAL SHAFT SEAL in timing case cover at bottom.

Assemble engine.
