11 12 106 Removing and installing right cylinder head (N63 O1)

Special tools required:

• 11 4 470 .
• 81 22 2 184 136.

Necessary preliminary tasks:

• Remove front axle completely with engine and transmission.

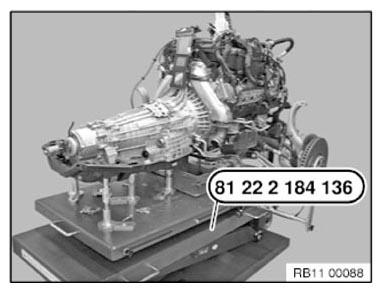

  Removed engine on table lift special tool 81 22 2 184 136.

  Graphic E72.

  Fig 1: Identifying Engine On Lifting Table Special Tool (81 22 2 184 136)

  Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

• Check TIMING .
• Remove INTAKE AND EXHAUST ADJUSTMENT UNIT on right side.
• Remove RIGHT EXHAUST MANIFOLD .

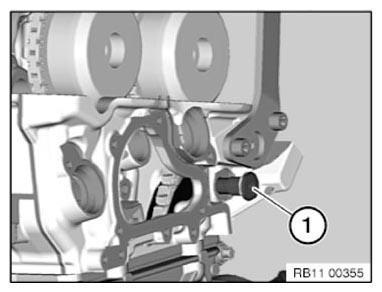

Remove screw (1) of guide rail.

Fig 2: Identifying Screw Of Guide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

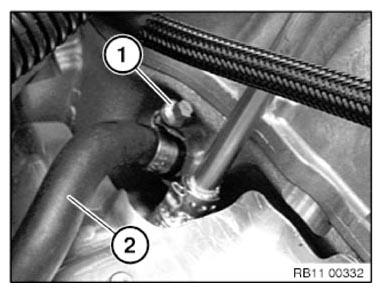

Release hose clamp (1) on bank 1.

Detach coolant hose (2).

Fig 3: Identifying Hose Clamp And Coolant Hose

Courtesy of BMW OF NORTH AMERICA, INC.

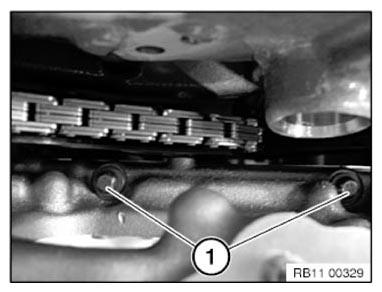

Release bolts (1) at front from cylinder head.

Fig 4: Identifying Bolts At Front Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

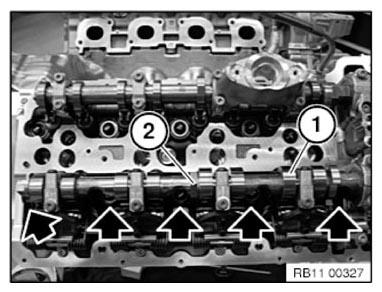

Twist camshaft (1) on hexagon head (2) by 180°.

All cylinder head bolts on the intake side are accessible in this position.

Fig 5: Identifying Camshaft, Hexagon Head, And Cylinder Head Bolts On Intake Side

Courtesy of BMW OF NORTH AMERICA, INC.

Release cylinder head bolts in sequence (10 to 1).

Remove all cylinder head bolts with washers.

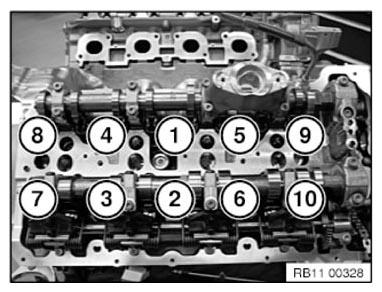

Fig 6: Right Cylinder Head Bolts Tightening/Loosening Sequence (N63 O1)

Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing faces of cylinder head and engine block; if necessary, remove gasket debris compound with special tool 11 4 470 . Make sure no gasket debris drops into the oil and coolant ducts.

Threaded holes in engine block must be free of dirt and oil. (risk of cracking)  .

Check CYLINDER HEAD FOR LEAKS .

Check CYLINDER HEAD SEALING FACE  for surface evenness.

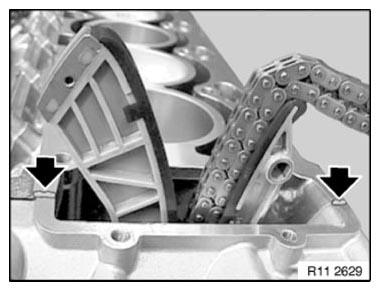

Coat joint between engine block and gear case cover with DREI BOND 1209  2.1.

Fig 7: Locating Joint Between Engine Block And Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

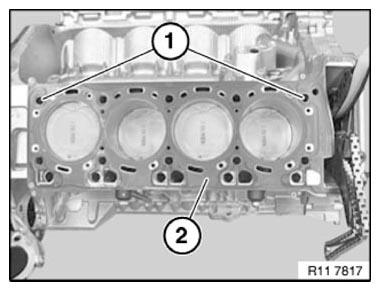

Check fitting sleeves (1) for damage and correct installation position.

Fit new cylinder head gasket (2).

Fig 8: Identifying Fitting Sleeves And Cylinder Head Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Fit new cylinder head screws  .

Put the cylinder head on.

Do not wash off bolt coating.

Insert cylinder head bolts and initially tighten so that they are free of play.

Apply cylinder head bolts in the sequence 1 - 10 and fit with 30 Nm.

Fig 9: Right Cylinder Head Bolts Tightening/Loosening Sequence (N63 O1)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

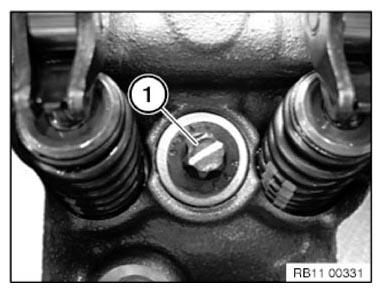

Mark cylinder head bolt (1) with a colored mark to check the angle tightening more effectively.

Fig 10: Marking Cylinder Head Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten cylinder head bolts in sequence (1 to 10).

Tightening torque: 11 12 1AZ .

Fig 11: Right Cylinder Head Bolts Tightening/Loosening Sequence (N63 O1)

Courtesy of BMW OF NORTH AMERICA, INC.

Twist back camshaft (1) on hexagon head (2) by 180°.

Fig 12: Identifying Camshaft, Hexagon Head, And Cylinder Head Bolts On Intake Side

Courtesy of BMW OF NORTH AMERICA, INC.

Install and tighten down bolts (1) between cylinder head and timing case cover.

Tightening torque: 11 12 2AZ .

Fig 13: Identifying Bolts At Front Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screw (1) of guide rail and tighten down.

Tightening torque: 11 31 3AZ .

Fig 14: Identifying Screw Of Guide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, install camshafts. See RIGHT INTAKE CAMSHAFT and RIGHT EXHAUST CAMSHAFT .

Install INTAKE AND EXHAUST CAMSHAFT ADJUSTERS on right side.

Assemble engine.
